Pilt on illustratiivne
Multimeeter 5999 ACV/DCV/DCA/R/C/bat UNI-T
- 29.00 €
- 24.00 € -17%
-
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1

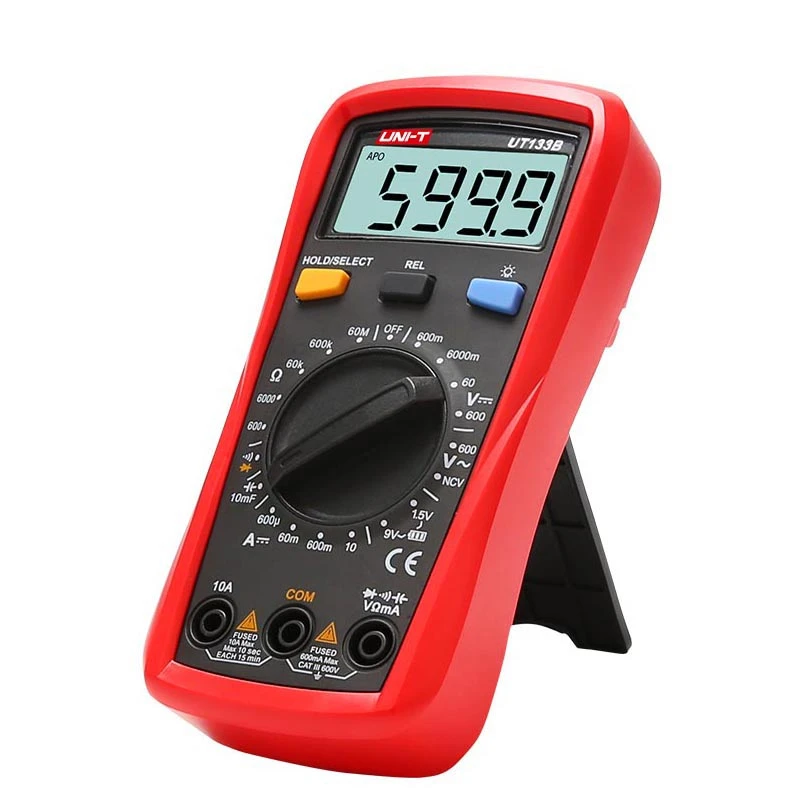

UT133B on turvaline, usaldusväärne ja kompaktne digitaalne multimeeter, millel on suure täpsusega ADC. Seda on lihtne kasutada ja see täidab suurt hulka funktsioone. See annab ülekoormuse korral helisignaali ja pakub elektrilist kaitset.
Measurement
AC voltage,
capacitance,
continuity,
DC current,
DC voltage,
resistance
Kind of display used
LCD (6000),
with a backlit
DC voltage measuring range
600mV/
6000mV/
60V/
600V
DC voltage measuring accuracy
±(0,5% + 3 digits)
AC voltage measuring range
600V
AC voltage measuring accuracy
±(1,2% + 3 digits)
DC current measuring range
600µA/
60mA/
600mA/
10A
DC current measuring accuracy
±(1% + 2 digits)
Resistance measuring range
600Ω/
6kΩ/
60kΩ/
600kΩ/
60MΩ
Resistance measuring accuracy
±(0,8% + 2 digits)
Capacitance measuring range
10nF/
100nF/
1000nF/
10µF/
100µF/
1000µF/
10mF
Capacitance measuring accuracy
±(4% + 5 digits)
Diode test
yes
Continuity test
acoustic signal for R<10Ω
Weight
255g
Power supply
2 batteries 1,5V LR03 (AAA)
Standard equipment
test leads
Conform to the norm
EN61010 600V CAT III
Dimensions (W x H x D)
76.5x155x49mm
