-17% Muundur 1000W 12VDC -> 230VAC siinus MeanWell

Pilt on illustratiivne

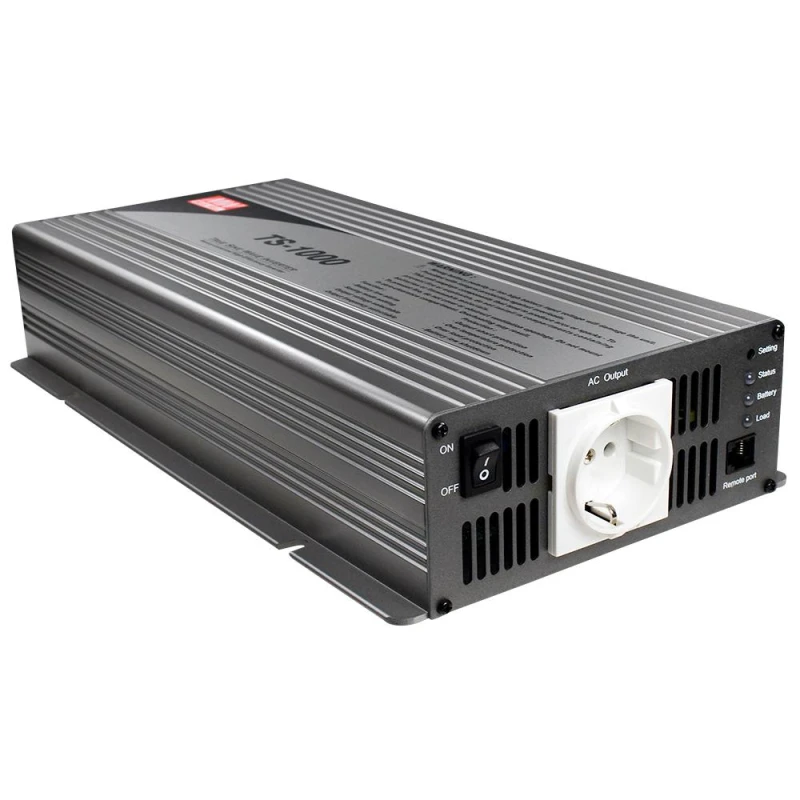

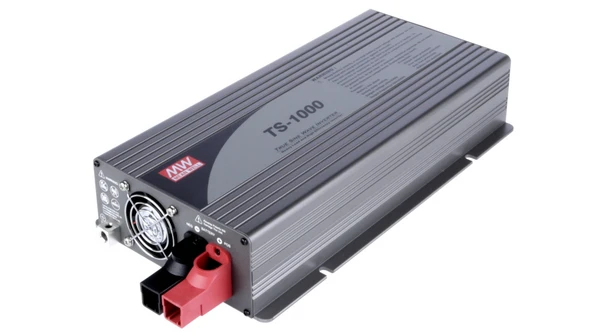

Muundur 1000W 12VDC -> 230VAC siinus MeanWell

Tootekood: TS-1000-212B
Mean Well
  • 349.00 €
  • 289.00 € -17%
Pealadu
Tallinn, Peterburi tee 90F
13 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
4 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
3 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
3 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
2 tk
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 tk

 Suitable for AV equipment, household appliances, automatic gates, motors, drills, TVs, angle grinders, refrigerators, power tools, air conditioners, freezers, heat pumps.

Has SCP short circuit protection, reverse polarity protection, OTP overheating protection, OPP overload protection, OVP overvoltage protection.


 Unit setup and operation

Connect the device to car cigarette lighter socket or - in case of devices with higher power rating

- directly to the battery.

Connect the device to be powered to the inverter.

Turn on the power using a button on the device, if the device has it.


 Precautions

Do not exceed the rated operating parameters.

Dangerous voltages may still exist in the power supply even after few minutes from turning off

the power.

All warranty and post-warranty repairs can be only performed by the supplier service provider or

specialized unit authorized by the manufacturer.

Pay attention to the polarity of the device power socket.

To avoid electric shock, follow the instructions below:

- Do not open the housing of the power supply when it is connected to the power source,

- Do not touch the inside components of the unit in operation - risk of electric shock or burns,

- Do not connect the adapter to the power supply if the power cord is damaged,

- Do not connect the adapter to the power supply until all connections are made correctly,

- Never let the device to get wet or to have any contact with liquids,

- Do not place the device near heat sources, and in areas of high humidity,

- The device may interfere with radio and television sensitive equipment located nearby.

Do not use the device if it emits smoke, an abnormal smell or strange sounds.

Technology

DC/AC

Net weight (gram)

4910

Power Format

True Sine Wave

Output Power (W)

1000

Output Voltage (V)

230

Output Current (A)

4.35

Input Voltage (V)

10.5 - 15

IP Rating

No IP assigned

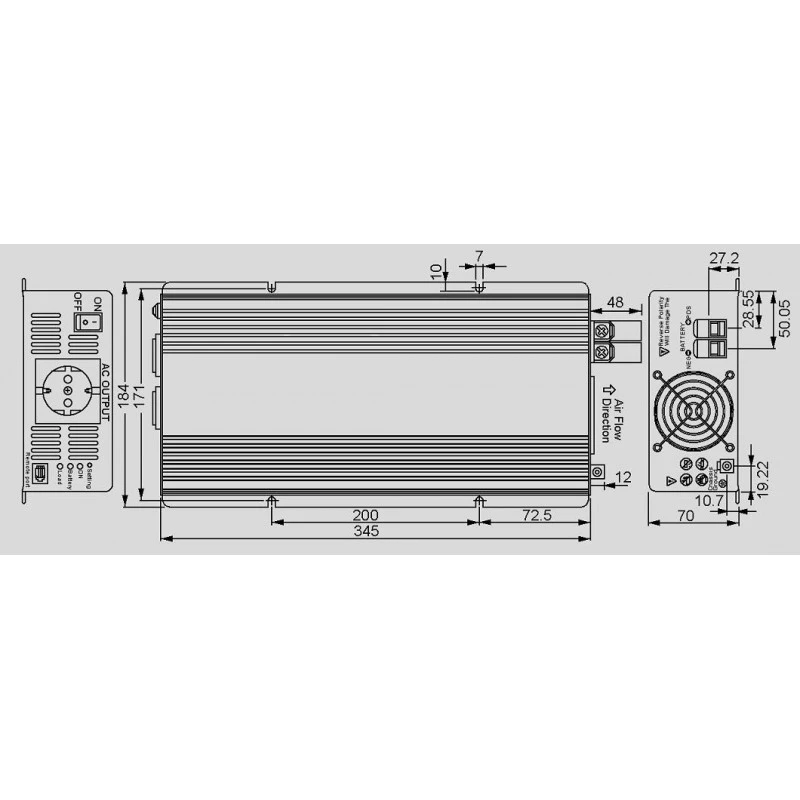

Width (mm) 184

Height (mm) 70

Depth (mm) 345

Control Signals

ON/OFF

Dimming Technology

No Dimming

TS-1000-212B Andmeleht
Lae alla
TS-700,1000 kasutusjuhend EE
Lae alla
