Pilt on illustratiivne

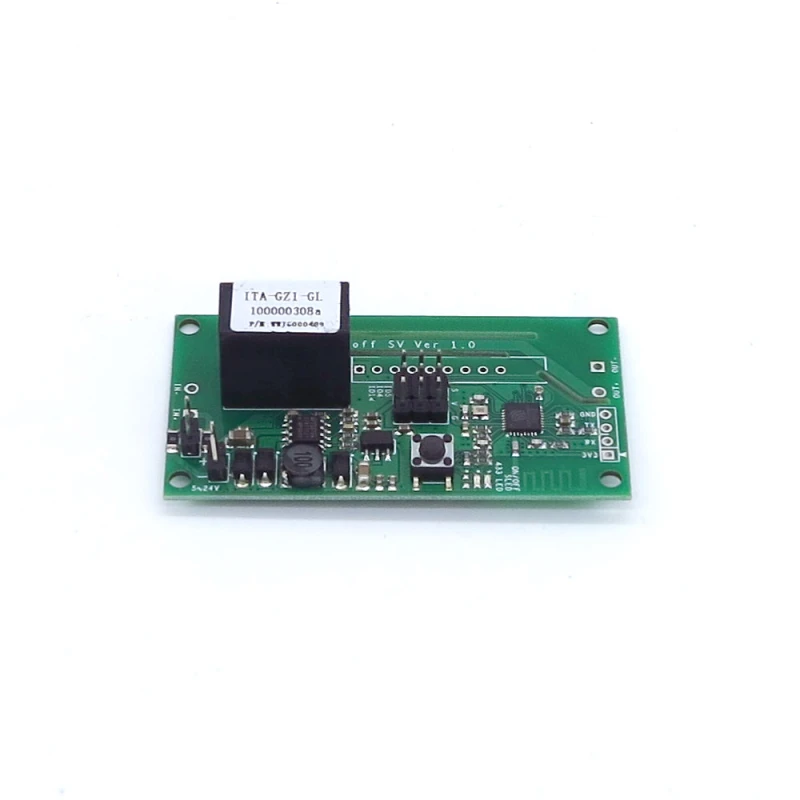

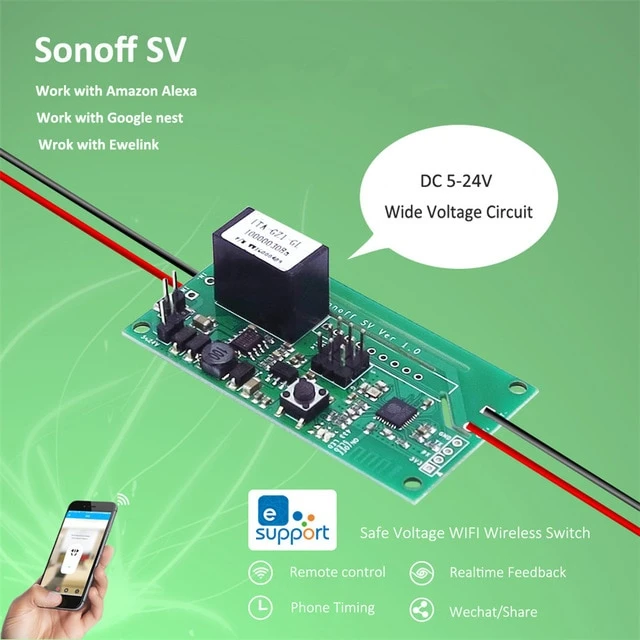

Sonoff SV madalpinge nutikas lüliti 10A 5-24V
Toode ei ole saadaval
SONOFF SV mis toetab 5-24V toidet. Võimaldab juhtida erinevaid seadmeid.
802.11 b / g / n
Built-in 32-bit micro-MCU Tensilica L106 with ultra-low power consumption, dominant support for 80 MHz and 160 MHz, RTOS support
Built-in TCP/IP protocol stack
Built-in TR switch, balun, LNA, power amplifier and matched networks
Built-in PLL, control component voltage and power controller, 802.11b Power output + 20 dBm
A-MPDU & A-MSDU guard interval 0.4μs
WiFi @ 2.4 GHz, supports WPA/ WPA2 safe mode
Support for Cloud OTA Updates
Support for STA/AP/STA + AP modes
UART, I2C, PWM, GPIO
Deep sleep supports 10 μA current, current shutdown less than 5 μA
2ms data packet wake, connect, and transfer capability
Power consumption in standby mode is less than 1.0 mW (DTIM3)
Operating temperature range: -40 ℃ - 125 ℃ Other parameters
