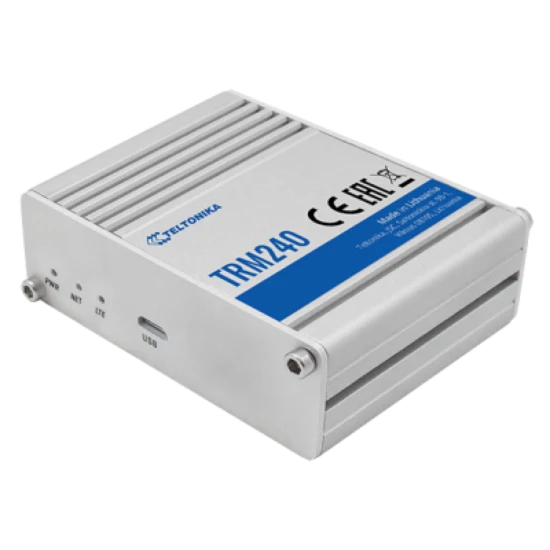

Tööstuslik LTE GSM ruuter CAT1 Mini SIM USB IP30, -40°C kuni 75°C

Mobile

Mobile module: 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps

3GPP Release: Release 12

Power

Connector: microUSB

Input voltage range: 5V - powered via microUSB

Power consumption: 3.2 W Max

Physical Interfaces

Status LEDs: 1 x Power LED, 1 x Network LED, 1 x Mobile LED

SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power: 1x microUSB

Antennas: 1 x SMA for LTE

Physical Specification

Casing material: Aluminium housing

Dimensions (W x H x D): 74.5 x 25 x 64.5 mm

Weight: 131 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

TRM SOFTWARE

Management Software: Windows Connection Manager (NDIS driver)

USB Driver: Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x

RIL Driver: Android 4.x/5.x/6.x/7.x/8.x

NDIS Driver: Windows 7/8/8.1/10

Gobinet Driver: Linux 2.6/3.x/4.1~4.14

Linux Driver: 3.x (3.4 and later)/4.1~4.14

Regulatory & Type Approvals

Regulatory: CE, UKCA, EAC, UCRF, Kenya, ICASA

EMC Emissions & Immunity

Standards: Draft EN 303 446-1 V1.1.0

ESD: EN 61000-4-2:2009

Radiated Immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

RF

Standards:

    EN 301 511 V12.5.1

    EN 301 908-1 V13.1.1

    EN 301 908-2 V13.1.1

    EN 301 908-13 V13.1.1

Safety

Standards: CE: EN 62368-1:2014 + A11:2017, EN 62311:2008
