Termokaamera Hikmicro Mini1 -20°C....350°C telefonidele USB-C
Toode ei ole saadaval

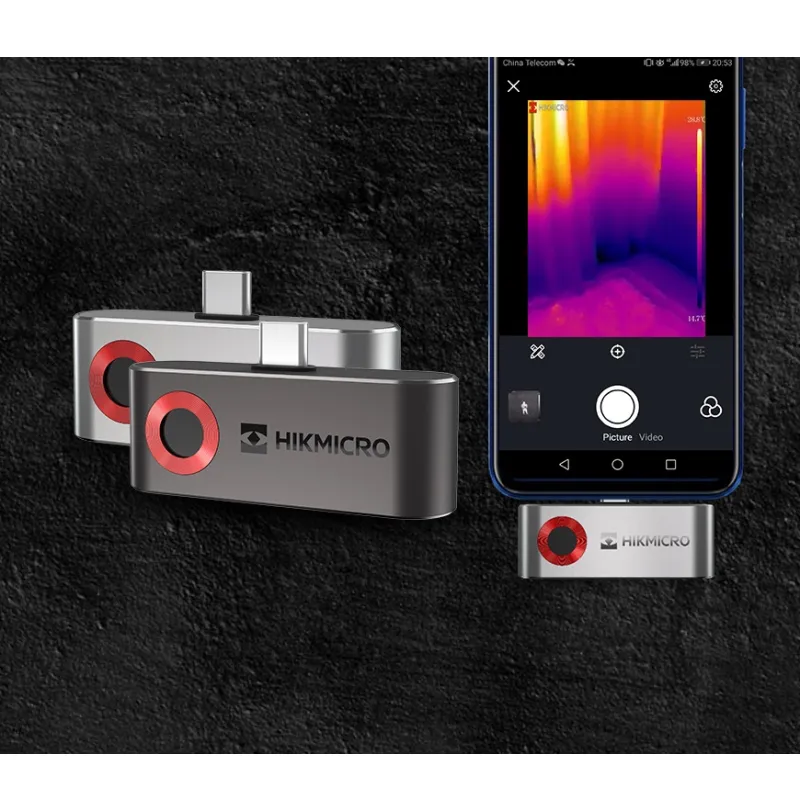

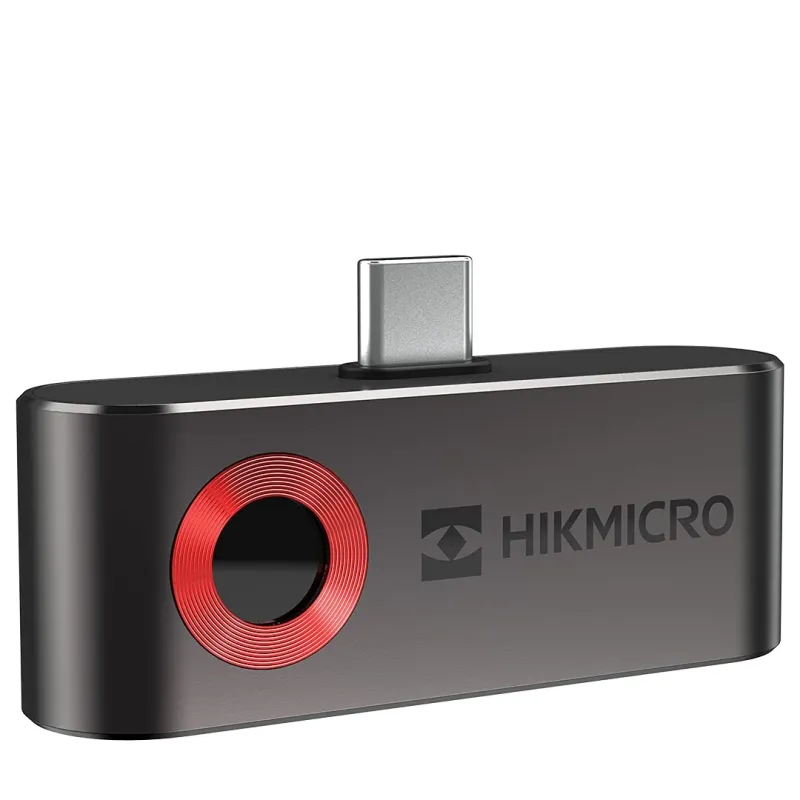

Hikmicro Mini1 on nutitelefoni termokaamera moodul, mis võimaldab lihtsalt ja kiirelt mõõta pindade ja objektide temperatuuri, inspekteerida elektriseadmeid, otsida probleemi soojustuses ja ka näha objekte pimeduses.
Töövahemik -20 °C kuni +350 °C katab ära erinevad vajadused. Varustatuna funktsionaalse nutitelefoni Thermal äppiga, saate maailma vaadata hoopis teisel moel.
HM-TJ11-3AMF-MINI1
● 160 × 120 resolutsioon
● NETD < 40 mK (@25°C), F#=1.0
● Töövahemik -20 °C to 350 °C
● Täpsus ±2 ℃ (-20 °C to 100 °C) ; ±2 %C (100 °C to 350 °C)
● USB Type-C liides (Android)
● kompaktne ja kerge - 26 g
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution 160 × 120 (19 200 pixels)
Pixel Pitch 17 μm
Spectrum Range 8 - 14 μm
NETD < 40 mK (@ 25 °C, F#=1.0)
Focal Length 3.2 mm
FOV (Field of View) 50° × 38° (H × V)
Minimum Focus Distance 20 cm
Focus Fixed
Image Frequency 25 Hz
Aperture F1.1
Thermography Function
Accuracy ±2 °C (-20 °C to 100 °C) ; ±2 % (100 °C to 350 °C)
Object Temperature Range -20 °C to 350 °C
Shutter Automatic/Manual
General
Power Powered by Smartphone
Phone Android (USB Type-C Interface)
Working Temperature Range 15 °C to 35 °C
Storage Temperature Range -20 °C to 60 °C
Protection Level IP40
Mechanical shock Drop from 1 m
Weight 26 g

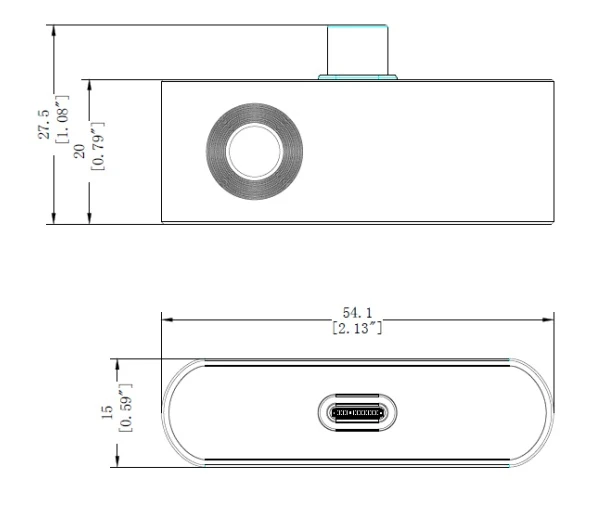

Dimension 54.1 mm × 15 mm × 27.5 mm
Power Consumption 300mW
App
Measurement Presets Hot Spot, Cold Spot, Center Spot, 1 User Preset Point, 1 User Preset Box, Off
Colour Palettes Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
Video Format MP4
Image Format JPEG
