1uHz-35MHz 2-CH Arbitrary Waveform Generator
1uHz-35MHz 2-CH Arbitrary Waveform Generator
1uHz-35MHz 2-CH Arbitrary Waveform Generator
1uHz-35MHz 2-CH Arbitrary Waveform Generator
1uHz-35MHz 2-CH Arbitrary Waveform Generator

Image is for illustrative purposes only

1uHz-35MHz 2-CH Arbitrary Waveform Generator

SKU: XDG2035
OWON
Pealadu
Tallinn, Peterburi tee 90F
0 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
0 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
0 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs

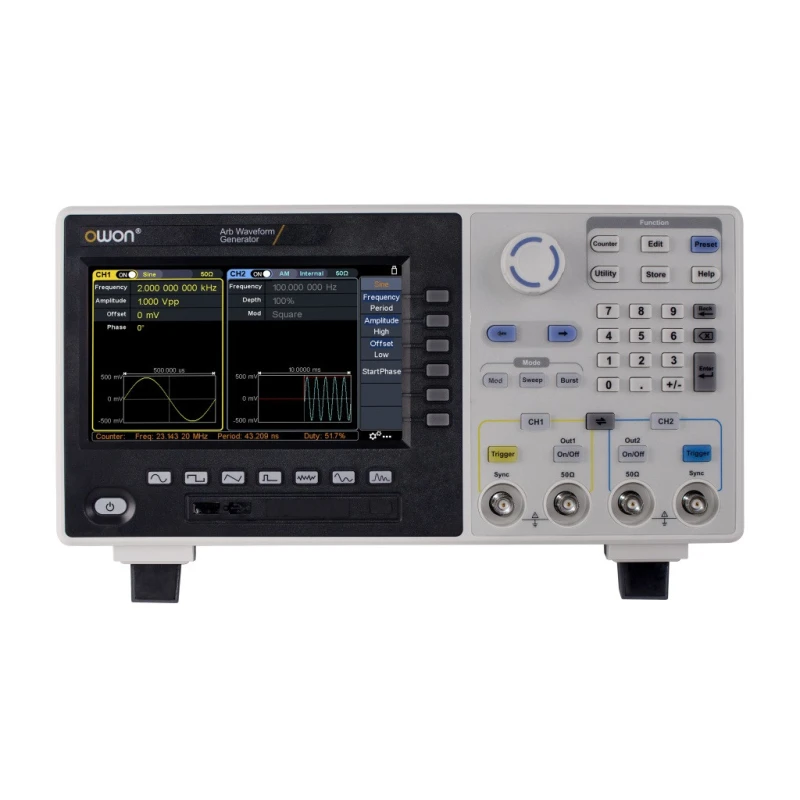

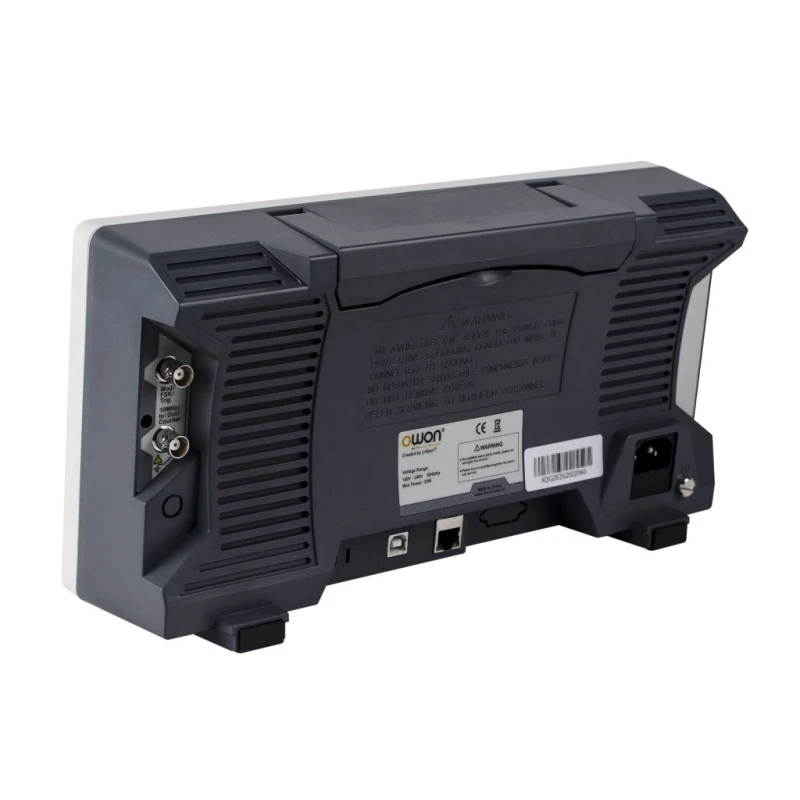

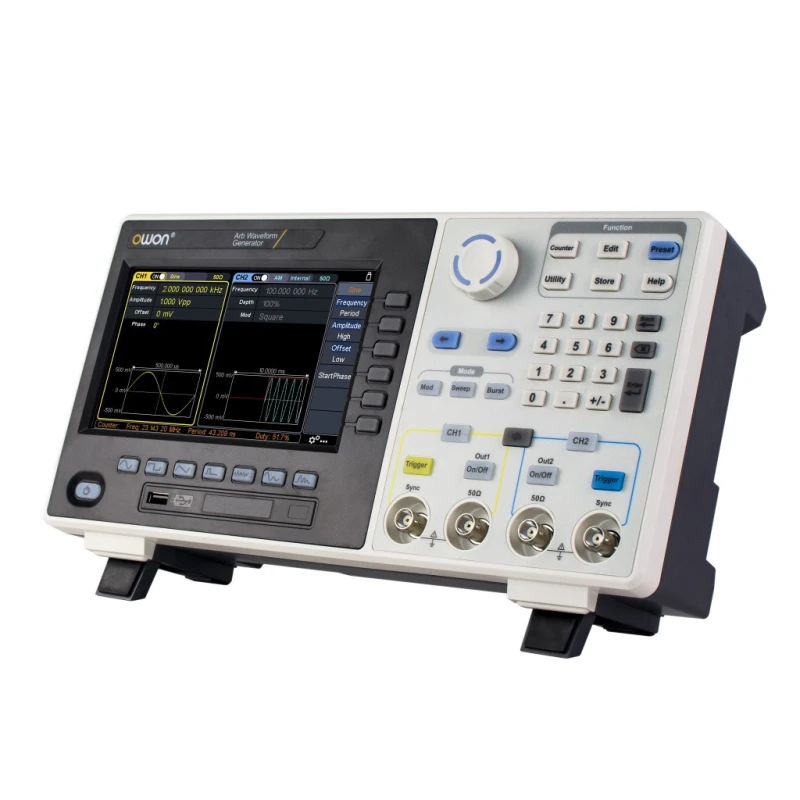

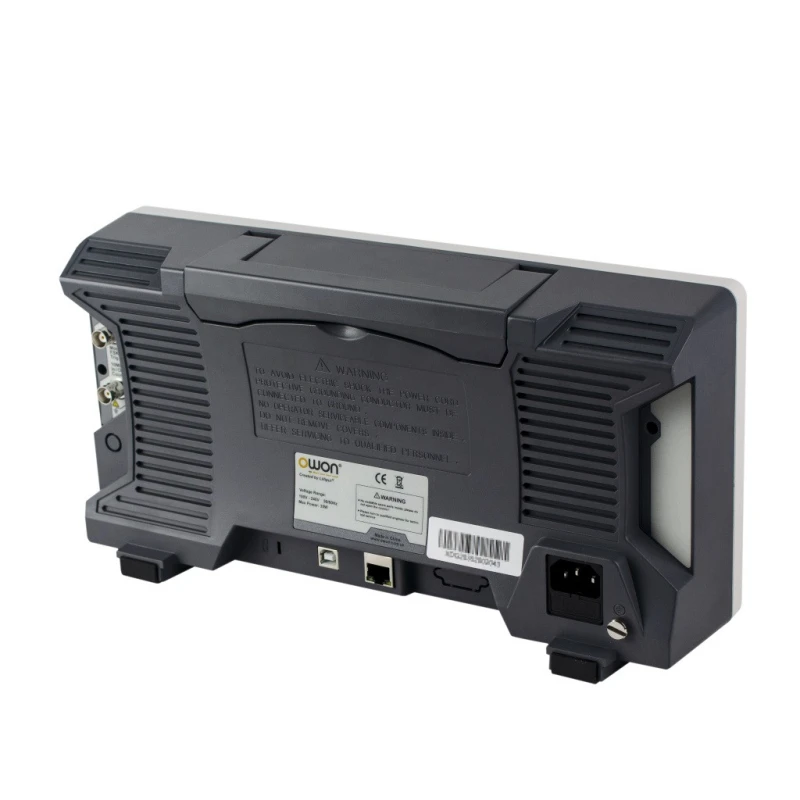

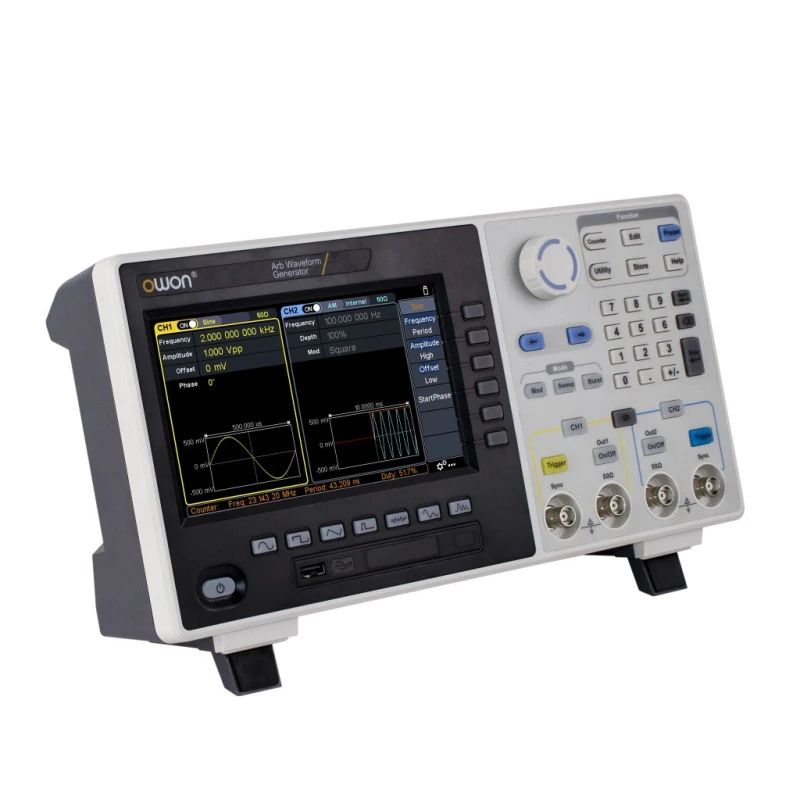

The OWON XDG2035 2-channel is a function / waveform generator that can generate signals with a maximum frequency of 35 MHz. The generator has a  resolution of 1 µHz and a sample rate of 500 MSa / s. The OWON XDG2035 is capable of generating 6 standard waveforms and 150 arbitrary waveforms. With the included software you can write advanced functions up to 10 million points. Waveforms can be saved to the function generator's internal memory using a PC via USB or LAN. The OWON XDG2035 also supports SCPI commands and LabView. The function generator has an integrated high-quality frequency counter, which can operate from 100 MHz to 200 MHz.

Channel 2

Frequency Output 35MHz

Sample Rate 500MSa/s

Vertical Resolution 14 bits

Waveform

Standard Waveform sine, square, pulse, ramp, noise, and harmonic

Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform

Frequency (resolution 1μHz)

Sine 1μHz-100MHz

Square 1μHz ~ 30MHz

Pulse 1μHz ~ 25MHz

Ramp 1μHz ~ 3MHz

Noise (-3dB，typical) 100MHz

Arbitrary Waveform 1μHz ~15MHz

Harmonic 1μHz ~50MHz

Accuracy ±2ppm, 25°C±5°C

Waveform Length 2 points - 10M points

Amplitude

into 50Ω load 1mVpp ~ 10Vpp（≤ 25MHz）； 1mVpp ~ 5Vpp （≤60MHz）；1mVpp ~ 2.5Vpp（≤100MHz）；

Modulation

Type AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM

Frequency Counter

Function Frequency， period, +width, -width, +duty, and -duty

Frequency Range 100mHz ~ 200MHz

Frequency Resolution 7 digits

Input / Output

Input mode frequency counter, external modulation input,external trigger input,Internal clock output,external reference clock input / output

Communication Interface USB Host, USB Device,LAN，RS232(optional)

Mechanical specifications

Size 340mm x 177mm x 90mm

Weight 2.5g

XDG2000 Seeria kasutusjuhend EN
