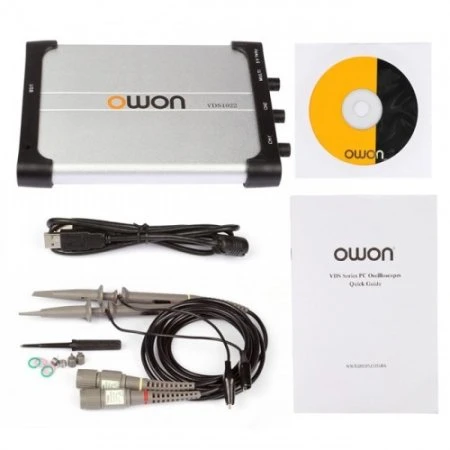

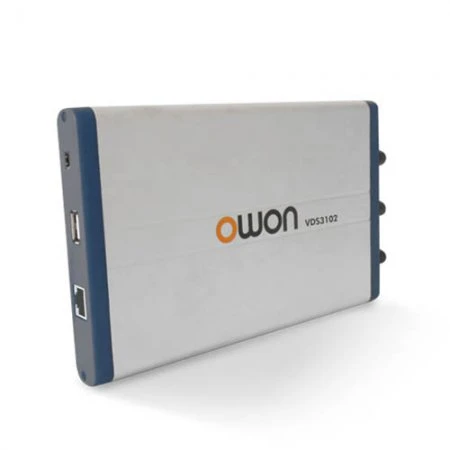

Image is for illustrative purposes only
2 channel PC oscilloscope 100MHz 1GS/s USB
- 379.00 €
-
- Customer price 360.05 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation
- less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability
Bandwidth 100 MHz
Rise Time ≤5.8 ns
Channel 2+1 (multi)
Sample Rate 1 GSa/s
Record Length 10M pts
Vertical Resolution (A/D) 8 bits
Horizontal Scale (s/div) 5 ns/div - 100 s/div
Vertical Sensitivity 5 mV/div - 5 V/div
Input Coupling DC, AC, GND
Input Impedance 1 MΩ ± 2%, 10 pF ± 5 pF
Channels Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 40V (PK - PK) (DC+AC, PK - PK)
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Trigger Type Edge, Pulse, Video, Slope, Alternate
Cursor Measurements △V, △T
Automatic Measurement Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Math Functions Addition, Subtraction, Multiplication, Division, Invert, FFT
Lissajous Curve ±3º
Interface USB 2.0
Power Supply ≤5V/1.5A
Power Consumption ≤6.5W
Dimensions 170 × 120 × 18 mm
Weight 0,26 kg
