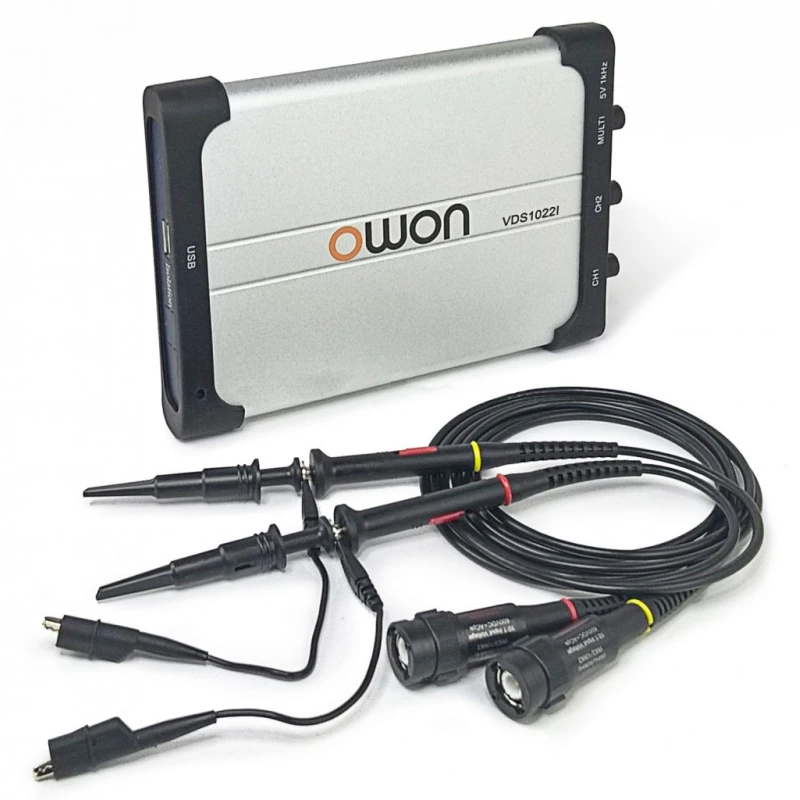

2 kanaliga arvuti ostsilloskoop 25MHz 100MS/s isol. USB
SKU: VDS1022I
- 125.00 €
-
- Customer price 118.75 € -5%
- Log in and get at least a 5% discount
The service is provided by Inbank AS. Read the terms
To submit Liisy payment by installment application add products to cart, choose Liisi payment by installment as the payment method and cofirm your order. After confirming the order Liisi application will appear. Calculations are approximate and may differ from conditions offered to you.
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
6 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
1 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs
Band width: 25MHz
Number of Channels: 2
Sampling rate: 100MS/s
Horizontal resolution: 5ns/div - 100s/div, Step 1 - 2-5
Platform edge: <= 14ns
Record length: 5k
Input impedance: 1 MOhm +-2%
Channel Isolation: 50Hz: 100:1, 10MHz: 40:1
Max. Input voltage: 400V (Pk-Pk) (DC + AC, Pk-Pk)
SW prescaler Probes: 1x, 10x, 100x, 1000x
Vertical resolution (A/D): 8bit
Vertical sensitivity: 5mV/div - 5V/div
Trigger: Edge, Pulse, Video, Slope, Alternate
Trigger Mode: Auto, Normal, Single
Setting Cursor: delta V and delta T between cursors
Mathematical operations: +, -, x, /, FFT
Number of Channels: 2
Sampling rate: 100MS/s
Horizontal resolution: 5ns/div - 100s/div, Step 1 - 2-5
Platform edge: <= 14ns
Record length: 5k
Input impedance: 1 MOhm +-2%
Channel Isolation: 50Hz: 100:1, 10MHz: 40:1
Max. Input voltage: 400V (Pk-Pk) (DC + AC, Pk-Pk)
SW prescaler Probes: 1x, 10x, 100x, 1000x
Vertical resolution (A/D): 8bit
Vertical sensitivity: 5mV/div - 5V/div
Trigger: Edge, Pulse, Video, Slope, Alternate
Trigger Mode: Auto, Normal, Single
Setting Cursor: delta V and delta T between cursors
Mathematical operations: +, -, x, /, FFT
Interface: USB 2.0
Power: 5V / 1A
Power consumption: <= 5W
Dimensions: 190 x 120 x 18 mm
Power: 5V / 1A
Power consumption: <= 5W
Dimensions: 190 x 120 x 18 mm
