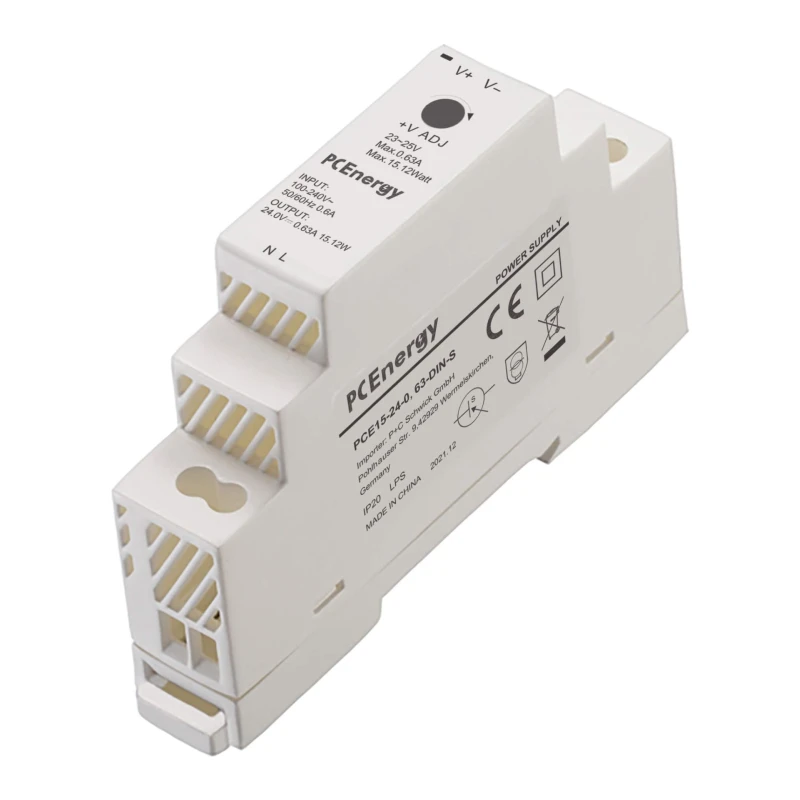

Image is for illustrative purposes only
DIN Rail Power Supply 24VDC 0.63A 15W 1U
- 14.00 €
-
- Customer price 13.30 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
PCE15-24-0.63 DIN Rail Power Supply Features
High efficiency (77%)
Low ripple and electrical noise
Protected against overload, overcurrent, overvoltage, as well as short circuits
Adjustable output voltage (23V - 25V)
Built-in signal light
Compact and user-friendly design
Easy installation by click method

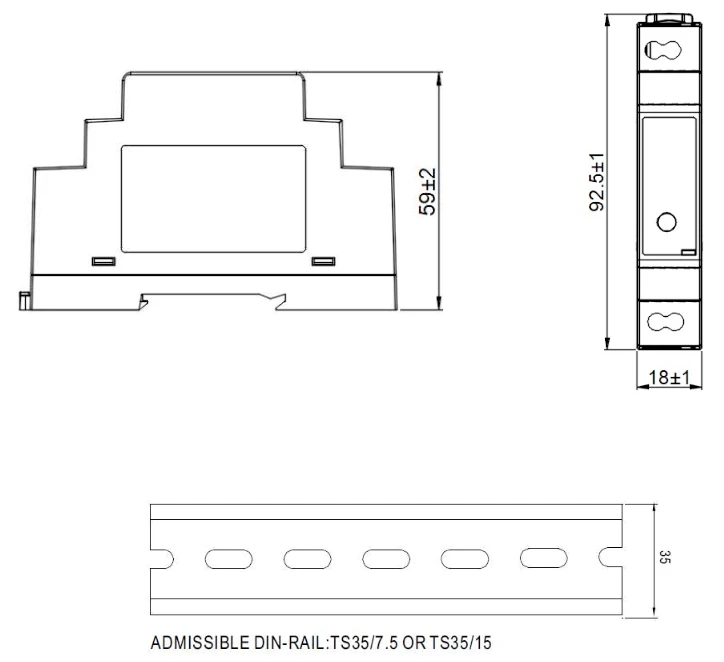

Compatible with DIN rail TH 35/7,5 and TH 35/15 (TS 35/7,5 and TS 35/15)
Protection class II
RoHS and REACH compliant
DIN standard compliant: EN 55032:2015; EN 55035:2017; EN IEC 61000-3-2:2019; EN 61000-3-3:2013; EN 62368-1:2014+A11:2017
Input voltage: 100-240V 50/60 HZ alternating voltage
Output voltage: 24V; DC voltage (23 - 25 V adjustable voltage range)
Output current: 0,63A
Power: 15 Wattage
Operating temperature: -20 °C to 50 °C
Storage temperature: -40 °C to 85 °C
Relative humidity during operation: 20 - 90 %, non-condensing
Relative humidity during storage: 10 - 95 %
Sealing Class: IP20
