DC/DC step-down power module 7-20V/5V 4A THT SMD
SKU: MOD-2098
- 6.50 €
-
- Customer price 6.18 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
0 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
3 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
5 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
3 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs

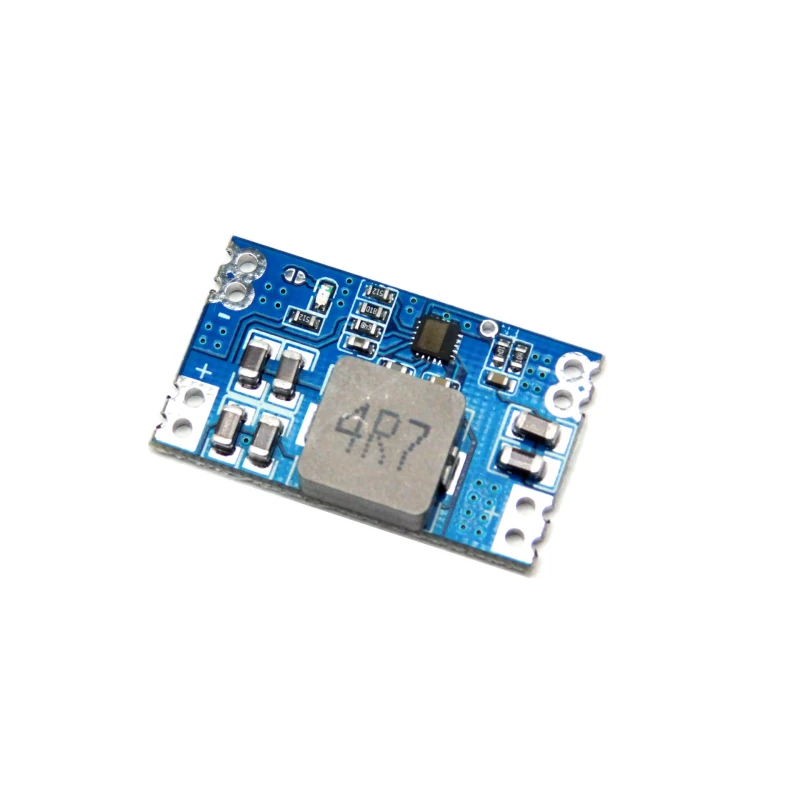

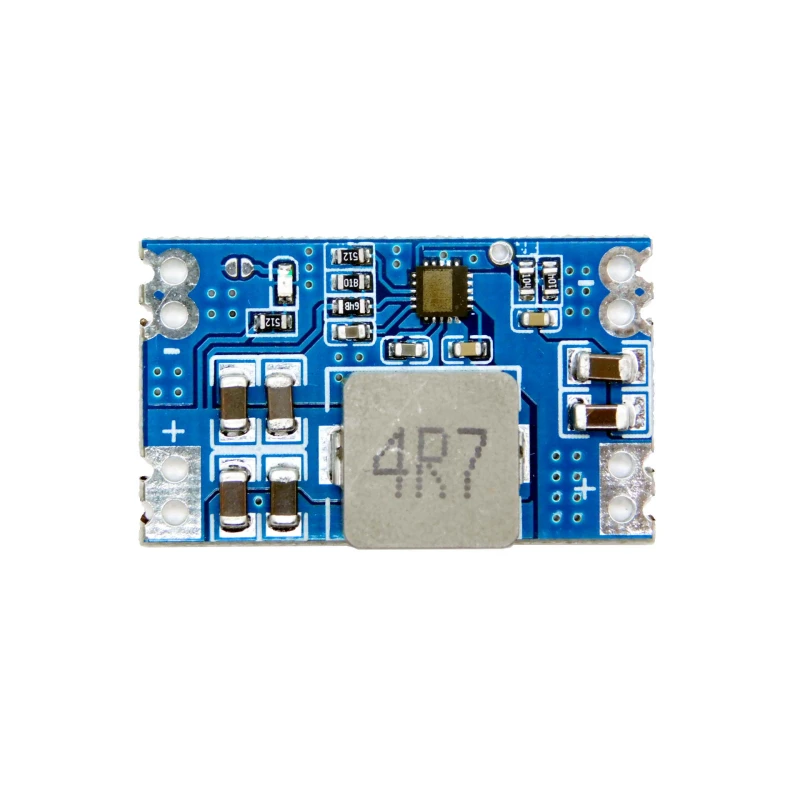

The MOD-2098 is a compact and powerful DC/DC step-down power module designed to efficiently convert a higher DC voltage (6.7V-20V) to a stable 5V output, suitable for various electronic applications. It supports both SMD and THT mounting options.
Key Features
- Step-Down Conversion: Converts higher DC input voltage to a lower, stable 5V DC output.
- High Efficiency: Achieves a maximum efficiency of 95%, minimizing energy loss and heat generation.
- Compact Size: Small form factor (30.0 x 18.0 x 5.5 mm) allows for easy integration into space-constrained applications.
- Dual Mounting Options: Supports both THT (through-hole technology) and SMD (surface mount device) mounting for versatile assembly.
- High Output Current: Delivers a continuous output current of 4A and a peak current of 5A @ 5V.
Versatile Applications and Benefits
- Embedded Systems: Provides a reliable 5V power supply for microcontrollers, sensors, and other components in embedded systems.
- DIY Electronics Projects: Ideal for hobbyists and makers needing a stable 5V source for their projects.
- Mobile Power Packs: Can be used in DIY mobile power banks to provide a regulated 5V output for charging devices.
- Power Supply for Controller Boards: Suitable for providing power to various controller boards requiring a 5V input.
- LED Power: Can be used to power LED lighting systems and other applications.
Additional Information
The module utilizes a PWM (Pulse Width Modulation) working principle for efficient voltage conversion.
The module incorporates the Joulwatt JW5068A chip.

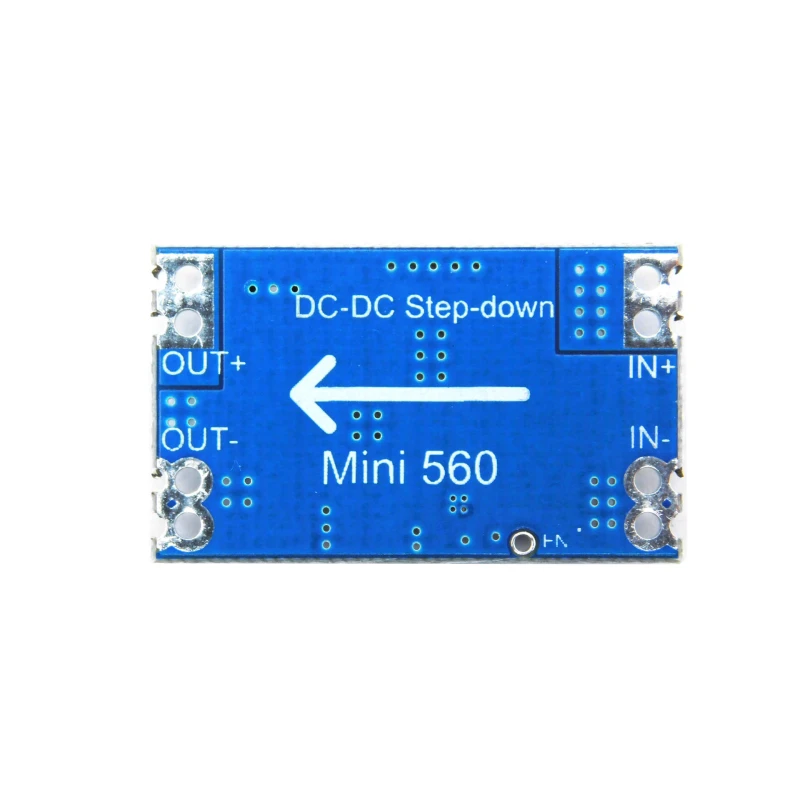

It is also known as StepDown DC/DC MINI560 (JW5068A) 5V 5A.
Input voltage up to 20V.
Key Features
- Step-Down Conversion: Converts higher DC input voltage to a lower, stable 5V DC output.
- High Efficiency: Achieves a maximum efficiency of 95%, minimizing energy loss and heat generation.
- Compact Size: Small form factor (30.0 x 18.0 x 5.5 mm) allows for easy integration into space-constrained applications.
- Dual Mounting Options: Supports both THT (through-hole technology) and SMD (surface mount device) mounting for versatile assembly.
- High Output Current: Delivers a continuous output current of 4A and a peak current of 5A @ 5V.
Versatile Applications and Benefits
- Embedded Systems: Provides a reliable 5V power supply for microcontrollers, sensors, and other components in embedded systems.
- DIY Electronics Projects: Ideal for hobbyists and makers needing a stable 5V source for their projects.
- Mobile Power Packs: Can be used in DIY mobile power banks to provide a regulated 5V output for charging devices.
- Power Supply for Controller Boards: Suitable for providing power to various controller boards requiring a 5V input.
- LED Power: Can be used to power LED lighting systems and other applications.
Additional Information
The module utilizes a PWM (Pulse Width Modulation) working principle for efficient voltage conversion.
The module incorporates the Joulwatt JW5068A chip.
It is also known as StepDown DC/DC MINI560 (JW5068A) 5V 5A.
Input voltage up to 20V.
Chip: Joulwatt JW5068A
Working principle: PWM
Max efficiency: 95%
Input voltage: 6.7V ÷ 20V
Output voltage: 5V
Max output current: Continuous: 4A
Max output current: Peak: 5A
Size: 30.0 × 18.0 × 5.5 mm
Working principle: PWM
Max efficiency: 95%
Input voltage: 6.7V ÷ 20V
Output voltage: 5V
Max output current: Continuous: 4A
Max output current: Peak: 5A
Size: 30.0 × 18.0 × 5.5 mm
