New Shelly RGB/RGBW led control unit WiFi 12-24V 288W

Image is for illustrative purposes only

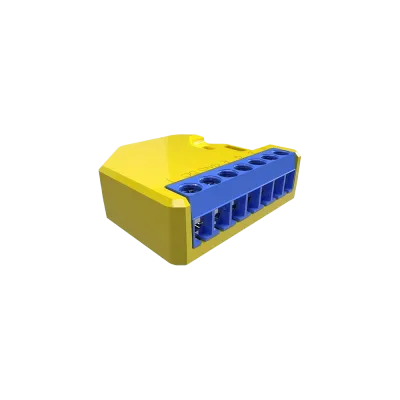

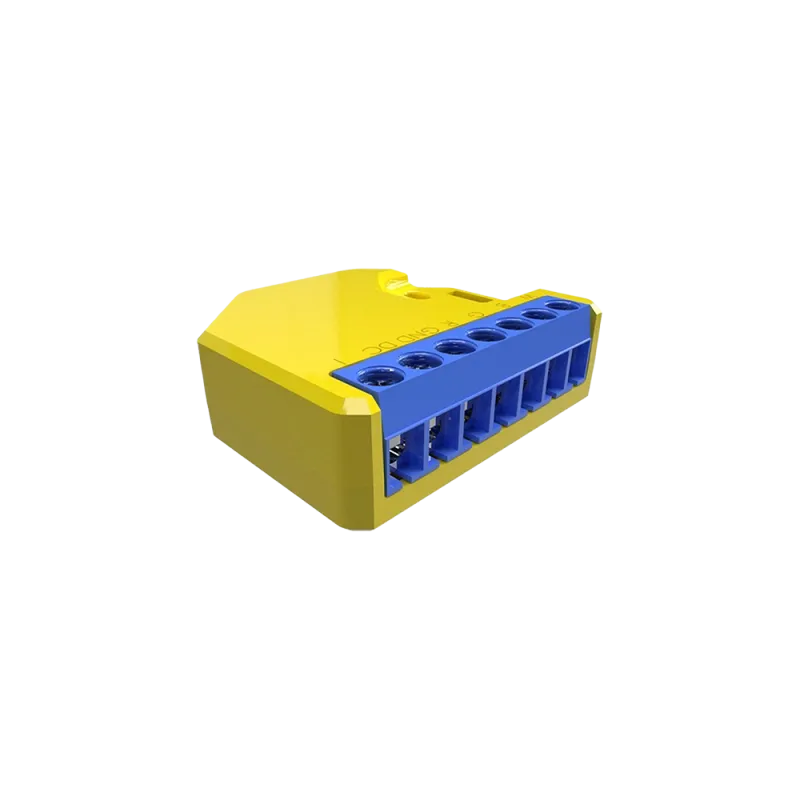

Shelly RGB/RGBW led control unit WiFi 12-24V 288W

SKU: SH-RGBW2
Shelly
Pealadu
Tallinn, Peterburi tee 90F
7 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

Make your LED strips smart in one easy step - connect like any LED controller and manage RGB+W, 4x single colour LED strips or any LED dimmable lights directly from your mobile device.

Key Features:

* Connects like any LED controller.

* Supports any 12v or 24v White, RGB, RGBW led strips and 12/24v led bulbs, with up to 288W combined power.

* Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.

* Has an embedded web server and connects to your Wi-Fi network

POWER

AC Power Supply: No

DC Power Supply: 12V/24V

DC Power Output 12V per Channel: 45W

DC Power Output 24V per Channel: 90W

DC Power Output 12V Combined Power: 144W

DC Power Output 24V Combined Power: 288W


SPECIAL FUNCTIONS

Device Temperature Protection: No

Overload Protection: No

Power Measurement: Yes

Dimming: Yes

Operation Without Neutral Line: No


FEATURES

Color Changing: Yes

Predefined Effects: Yes

Channels: 4 Channels

Maximum Load: 12A

Operating Temperature: 0°C to +40°C

Device Power Consumption: < 1 W

Intelligent On/Off: Yes

Local and Remote Control: Yes

Sunrise/Sunset Function: Yes

Weekly Schedule: Yes

UL Listed Option: No


CONNECTIVITY

Wireless/WiFi Protocol: 802.11 b/g/n

Radio Frequency: 2400 - 2500 MHz

Range: Up to 50 m outdoors and up to 30 m indoors (depending on building materials)


DIMENSIONS

Size: 43mm x 38mm x 14mm

SH-RGBW2 Manual EN
Download
