Shelly WiFi Smart Switch 1 channel 230V 8A
SKU: SH-MINI1GEN3
- 17.00 €
- 14.50 € -15%
-
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
51 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
3 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
5 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
2 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
4 pcs

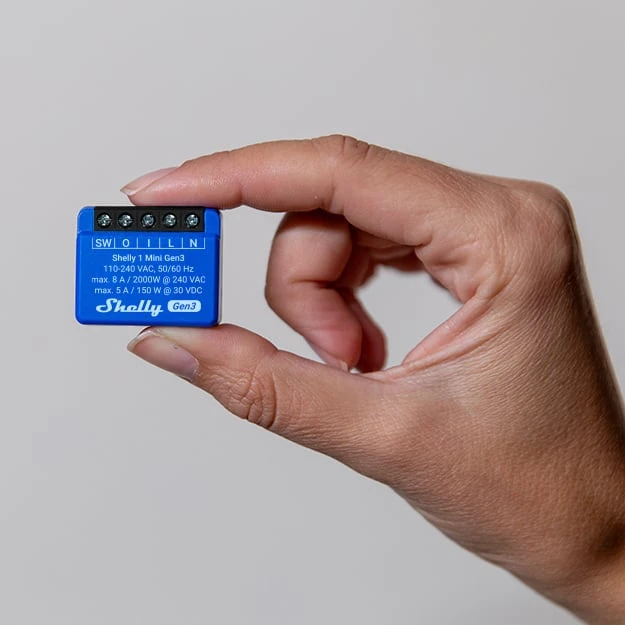

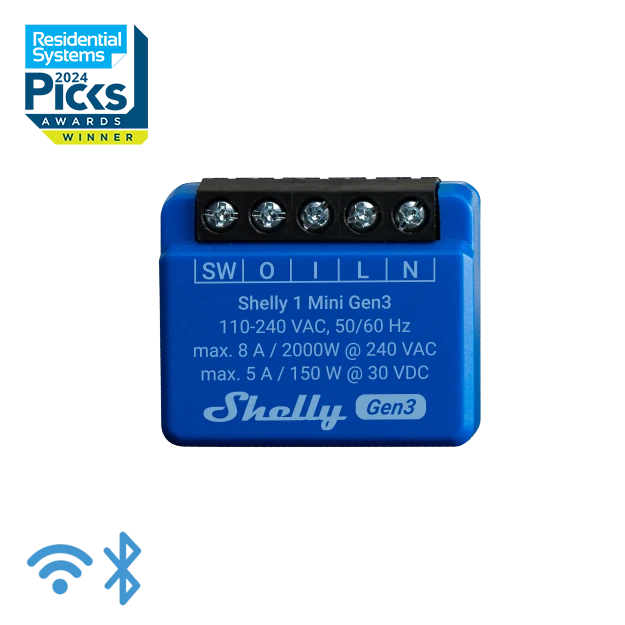

Shelly 1 Mini Gen3 is a compact and smart switch that enables simple and effective control of devices in your home. This device is designed for smart home solutions, offering users the ability to control various electrical appliances directly from their smartphone.
Main features:
•Small and light: Shelly 1 Mini Gen3 is designed to be installed in tight spaces.
•Wi-Fi connection: Control the device from anywhere with an internet connection.
•App control: Manage devices, create automation, and schedule activities as needed.
•Energy-saving: Reduce energy consumption by intelligently controlling electrical appliance usage.
Main features:
•Small and light: Shelly 1 Mini Gen3 is designed to be installed in tight spaces.
•Wi-Fi connection: Control the device from anywhere with an internet connection.
•App control: Manage devices, create automation, and schedule activities as needed.
•Energy-saving: Reduce energy consumption by intelligently controlling electrical appliance usage.

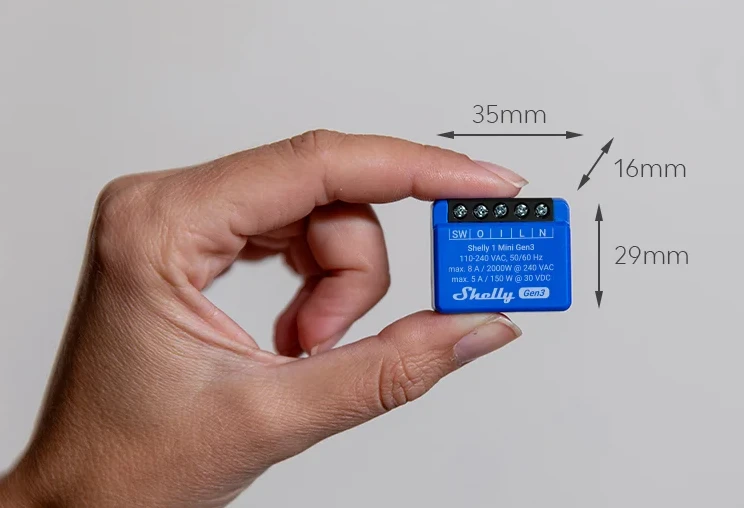

Size (HxWxD): 29x35x16 ±0.5 mm
Weight: 19 ±1 g

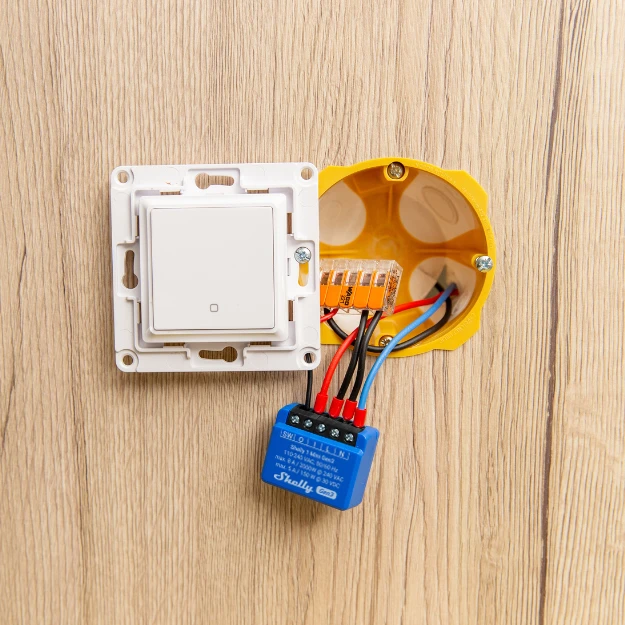

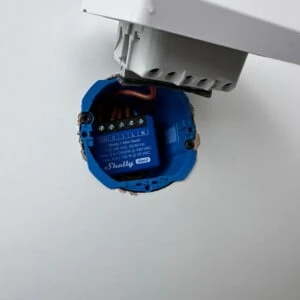

Mounting: Wall box
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG
Conductor stripped length: 6 to 7 mm
Shell material: Plastic
Color: Blue
Ambient temperature: -20 °C to 40 °C
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m
Power supply: 110 - 240 VAC
Relay: Dry, NO contact, 1-pole, µ contact
External protection: 10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Power consumption: < 1.2 W
Max switching voltage AC: 240 V
Max switching voltage DC: 30 V
Max switching current AC: 8A
Max switching current DC: 5A
Max switching power AC: 2000 W
Max switching power DC: 150 W
Power measurement: No
Voltage protection / Cutoff: No
Current protection / Cutoff: No
Max power protection / Cutoff: No
RF band: 2400 - 2495 MHz
Max. RF power:
Weight: 19 ±1 g
Mounting: Wall box
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG
Conductor stripped length: 6 to 7 mm
Shell material: Plastic
Color: Blue
Ambient temperature: -20 °C to 40 °C
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m
Power supply: 110 - 240 VAC
Relay: Dry, NO contact, 1-pole, µ contact
External protection: 10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Power consumption: < 1.2 W
Max switching voltage AC: 240 V
Max switching voltage DC: 30 V
Max switching current AC: 8A
Max switching current DC: 5A
Max switching power AC: 2000 W
Max switching power DC: 150 W
Power measurement: No
Voltage protection / Cutoff: No
Current protection / Cutoff: No
Max power protection / Cutoff: No
RF band: 2400 - 2495 MHz
Max. RF power:
