Sonoff control panel WIFI BT 230V 4A

Image is for illustrative purposes only

Sonoff control panel WIFI BT 230V 4A

SKU: SF-NS
SONOFF
Pealadu
Tallinn, Peterburi tee 90F
3 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
2 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
1 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
1 pcs

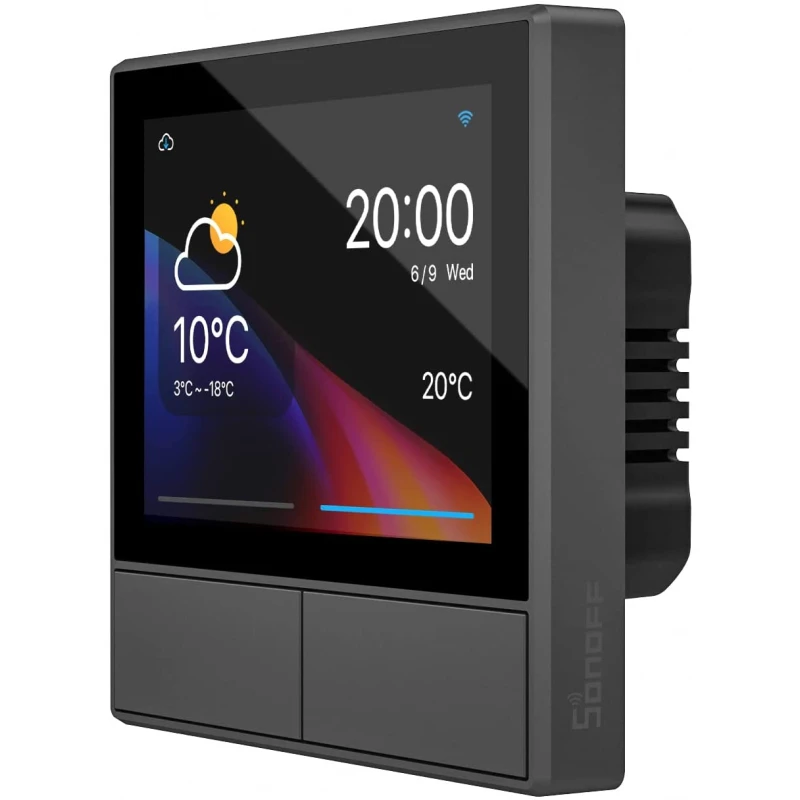

Do you need one device to centrally control multiple electrical appliances in your home, from lights, heaters, coolers, curtains, doors, and windows? Inconceivable!! NSPanel can control all of these devices, offering an integrated HMI panel for home automation that is super convenient, all you need to do is -- one tap.


NSPanel Smart Scene Wall Switch is equipped with a built-in powerful thermostat and environmental sensors. You can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger the heating or cooling equipment according to your setting conditions to keep the room at a comfortable temperature. What's more, NSPanel has a Scenario-based control function, you can set different modes for wake up, work, entertainment, and sleep, and can switch modes at any time.


Such a powerful panel, how to control it? There are three ways can control SONOFF NSPanel Smart Scene Wall Switch: use the dual-channel switches or touchscreen at a close distance, use the APP to control when you are at a long distance, voice control make your hand free.


SONOFF NSPanel is compatible with various devices of SONOFF, such as smart led bulbs, LED Filament Bulb, LED light strips, S26/S31 plugs, TX, MINIR2, POWR3!



Input

100-240V~ 50/60Hz 4A Max

Output

100-240V~ 50/60Hz 2A/Gang 4A/Total

LED Load

150W/110V/Gang, 300W/110V/Total, 300W/220V/Gang, 600W/220V/Total

Wi-Fi

IEEE 802.11 b/g/n 2.4GHz

Bluetooth Standard

4.2 BLE

TFT Screen Size

3.5" (Capacitive Touch Panel)

Screen Resolution

480*320px

APP Operating Systems

Android & iOS

Shell Materials

PC V0+CRS+Toughened Glass

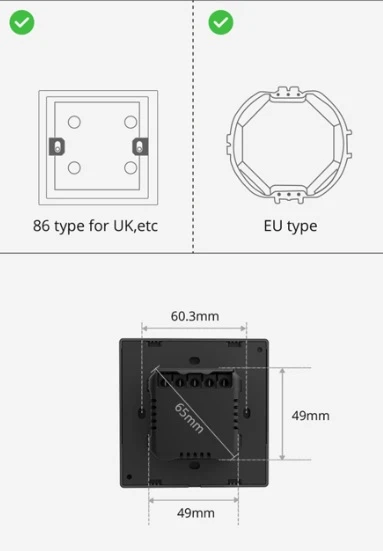

Dimension

NSPanel-EU: 86x86x41.7mm

Certifications

NSPanel-EU: CE/CQC/SRRC/RoHS, NSPanel-US: CE/FCC/RoHS

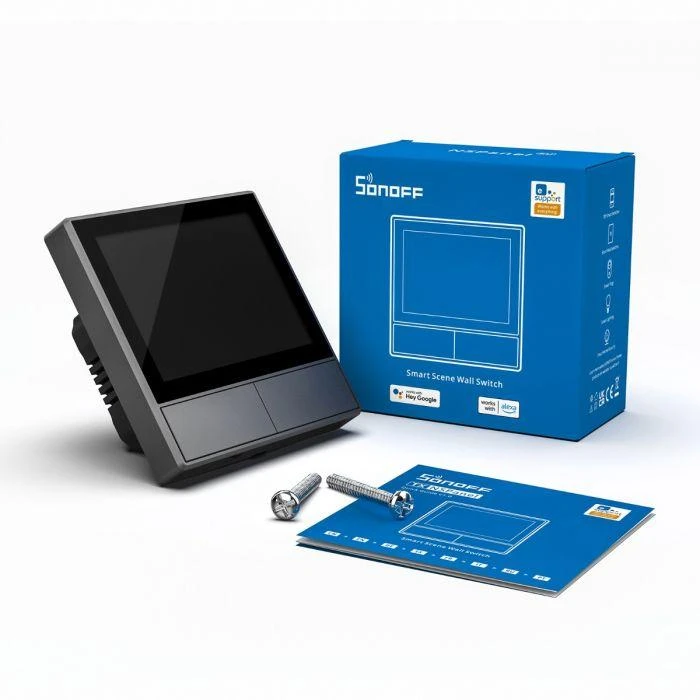

Package includes :

1 * NSPanel-EU/NSPanel-US

2 * Screw

1 * User Manual

SF-NS Andmeleht
Download
SF-NS Kasutusjuhend
Download
SF-NS Kiirkäivitus
Download
