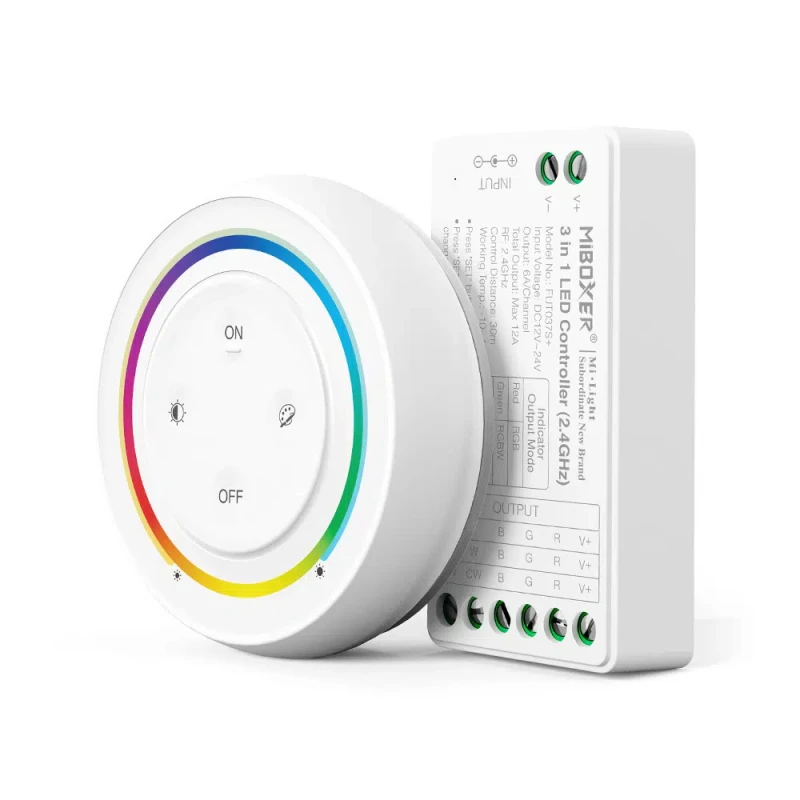

RGB/CCT LED control kit with round white control panel

Image is for illustrative purposes only

RGB/CCT LED control kit with round white control panel

SKU: FUT037SA+
MiBoxer
Pealadu
Tallinn, Peterburi tee 90F
3 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
0 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
4 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

Miboxer's FUT027 Led Controller Kit is a great choice for people who want to use coloured lights, but also want to leave the possibility to use more authentic and brighter white colour leds.


Remote controller functions: Color, saturation, colour temperature and also brightness, which has 2 dimming profiles, making it more universal for more led types.


Compatible with LED strips/modules with 3-5 colours and 12V/24V.

Mode is changed via the on-board button on the controller side (RGB/RGBW/RGBCCT)


Colour: White


Battery type: 2x AAA (LR03)

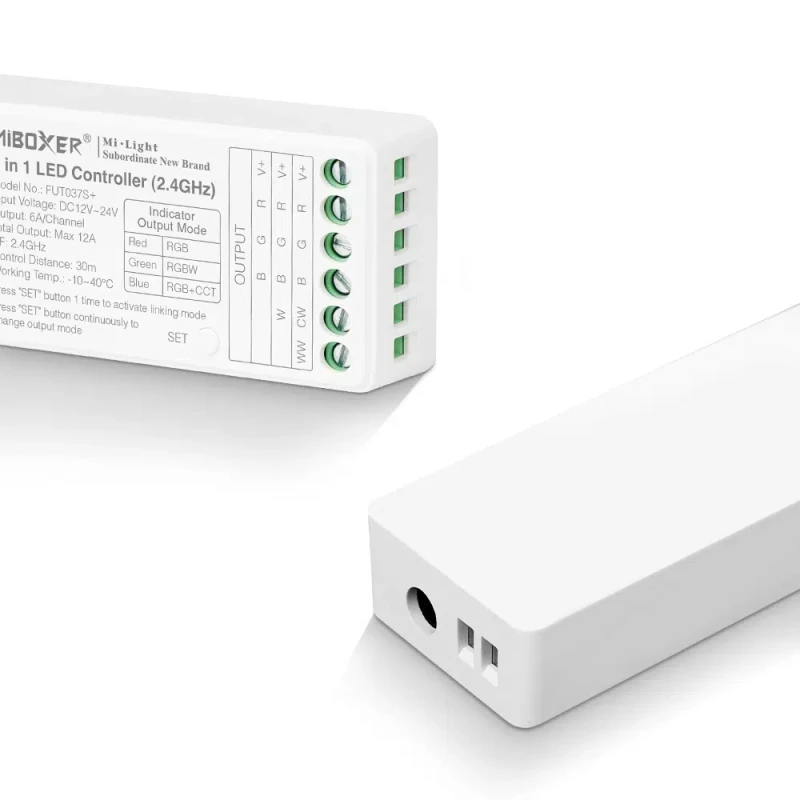

Model name: 3 in 1 LED Controller (2.4GHz )

Model Number: FUT037S+


Input voltage: 12-24V

Output current (per channel): 12A (6A)

Frequency range: 2.4GHz (2400-2483.5MHz)

Control distance: 30m

Output connection: Common anode (+)

Operating Temperature: -10~40°C

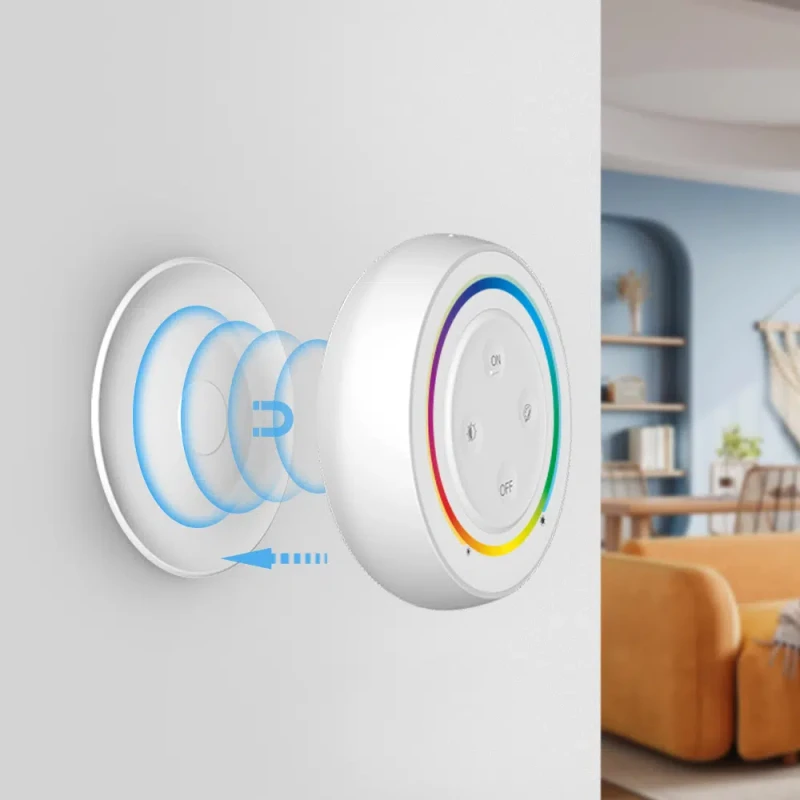

Model name: 2.4G Rainbow Remote (RGB+CCT)


Model Number: S2-W


Operating Voltage (Battery Type):3V (AAA*2pcs)

Standby Power Consumption:<20μA

Transmitting Power: 6dBm

Frequency range: 2.4GHz (2400-2483.5MHz)

Control distance: 30m

Modulation type: GFSK

Operating Temperatures: -10~40°C

FUT037SA+ Manual EN
Download
