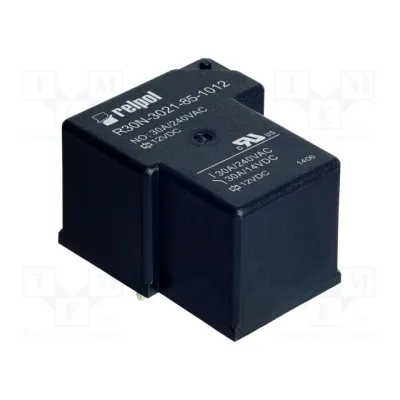

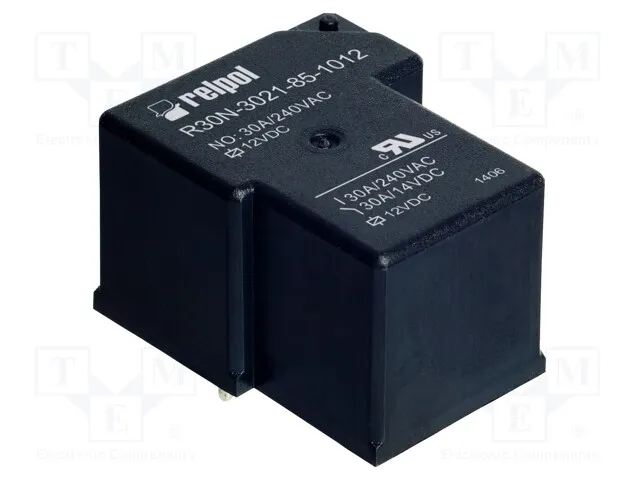

Image is for illustrative purposes only
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; Series: R30N
SKU: R30N3021851012
Product is not available
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; Series: R30N
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 30A
Relay series: R30N
Relay variant: power
Operating temperature: -55...100°C
Mounting: PCB
Body dimensions: 32,5x27,6x20,5mm
Switched voltage: max. 110V DC, max. 300V AC
Coil resistance: 160Ω
AC contacts rating @R (at resistive load): 30A / 240V AC
Contact material: AgSnO2
DC contacts rating @R (at resistive load): 30A / 14V DC
Coil power consumption: 0,9W
Contact resistance: 30mΩ
Operate time: 15ms
Release time: 10ms
Mechanical durability: 100000000 cykli
Electrical life: 1000000 cykli
IP rating: IP64
