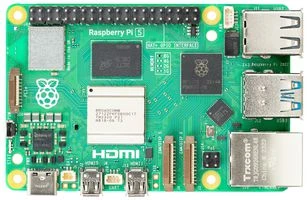

Raspberry PI 5 4GB Model B RPI5-5GB-SINGLE

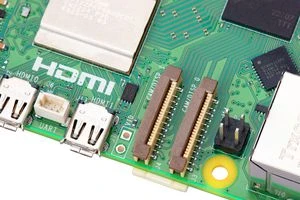

Raspberry Pi 5 model is the latest release of Raspberry Pi range. In comparison with its predecessor, it comes with a faster 2.4GHz Broadcom BCM2712, ARM Cortex-A76 CPU and VideoCore VII GPU supporting OpenGL ES 3.1, Vulkan 1.2 and better heat dissipation. There is significant improvement to camera, display, and USB interfacing also. The power-management IC used on Raspberry Pi 5 integrates a real-time clock, and charging circuitry for a button cell which can power the clock while main power is disconnected. Raspberry Pi 5 provides two four-lane MIPI connectors, each of which can support either a camera or a display. These interfacing improvements are delivered by the RP1 I/O controller chip. For the first time, we have Raspberry Pi silicon on a flagship product! The Raspberry Pi 5 is versatile and powerful single board computer that could be used for wide range of applications like DIY projects, educational tool, media center, server, desktop computer and many more IOT application.

System on chip Broadcom BCM2712, 2.4GHz quadcore 64-bit ARM Cortex-A76 with 512KB L2 caches and a 2MB shared L3 cache

4GB LPDDR4X-4267 SDRAM

Dual 4K 60Hz HDMI display output with HDR support

Dual-band 2.4GHz and 5.0GHz 802.11ac WiFi

Bluetooth 5.0 / Bluetooth Low Energy (BLE)

microSD card slot, with support for high-speed SDR104 mode

2x USB 3.0 ports, supporting simultaneous 5Gb/s operation

2x USB 2.0 ports

Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

PCI-Express 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adaptor)

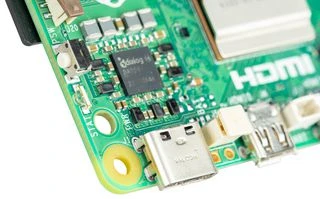

5V/5A DC power via USB-C, with Power Delivery support

Raspberry Pi standard 40-pin GPIO header

Real-time clock (RTC), powered from external battery

Onboard power button
