Touch switch dimmer 12-24V 4A blue LED
Touch switch dimmer 12-24V 4A blue LED
Touch switch dimmer 12-24V 4A blue LED

Image is for illustrative purposes only

Touch switch dimmer 12-24V 4A blue LED

SKU: S-TD008
Pealadu
Tallinn, Peterburi tee 90F
3 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
3 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
2 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
1 pcs

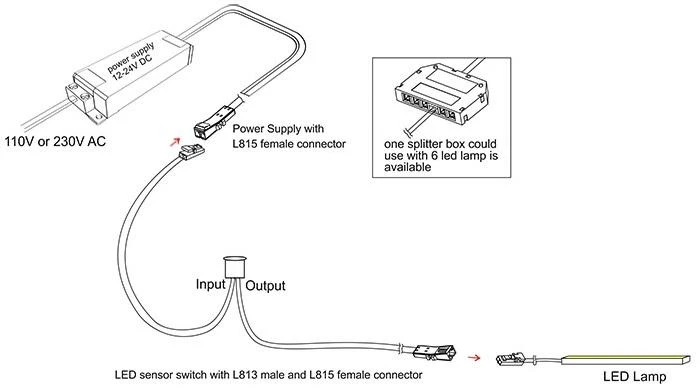

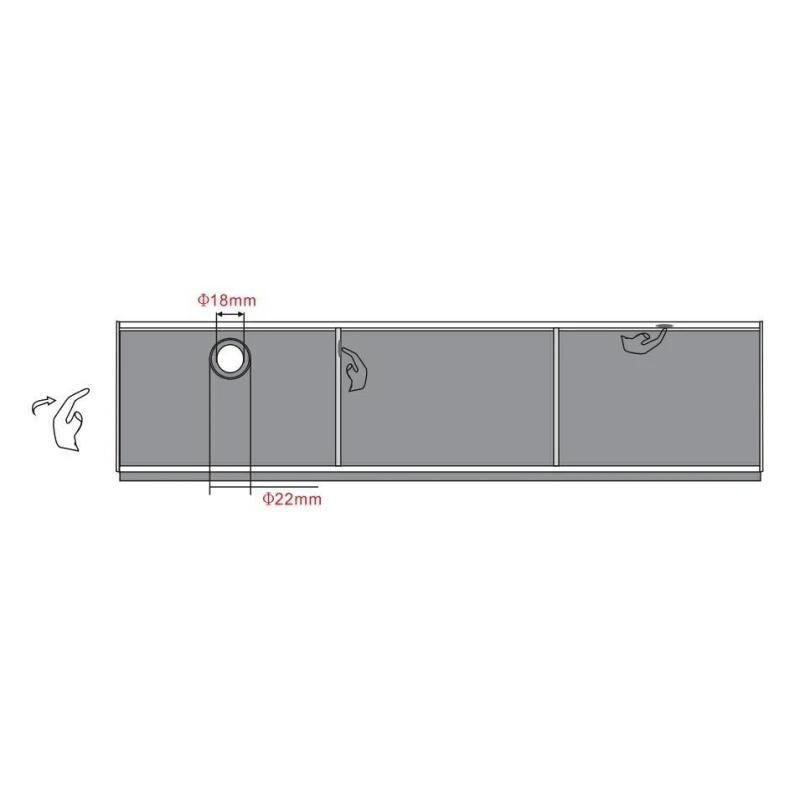

Touch switch with dimmer function, blue LED, for 12-24V systems. Usage: Touch to turn on/off Dimming and brightening by holding the switch. A quick touch (time is less than 550 ms) can turn the light on/off. Single touch to turn on; touch again to turn off. When the lamp is turned on, it lights up to 90%. Holding touch (time is over 550 ms) allows you to adjust the brightness indefinitely. Reduces brightness to minimum brightness in 3 seconds when held down while the light is on. Increases brightness to 100% indefinitely in 3 seconds when held down while the light is off. The sensor remembers the brightness level at 12V-24VDC. Installation steps: Step I: Cut an 18 mm diameter hole in the fixture. Step II: Place the sensor head in the 18 mm diameter hole. Step III: Connect the wires to the LED and power supply, taking into account the direction. Diameter: 18 mm
Touch Element Illumination: Blue
Input Voltage: 12...24 V
Maximum Current: 4A
Maximum Power: 12V/48W, 24V/96W
Cable Length: Approximately 1m
Included: Steel nut and rubber cap for a more secure button attachment.
Power Connector: 2.1/5.5mm, center positive
