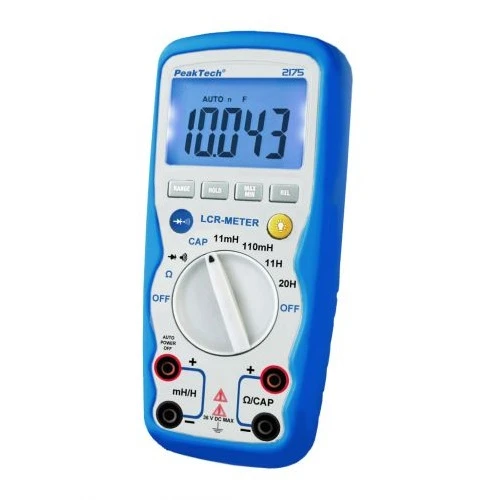

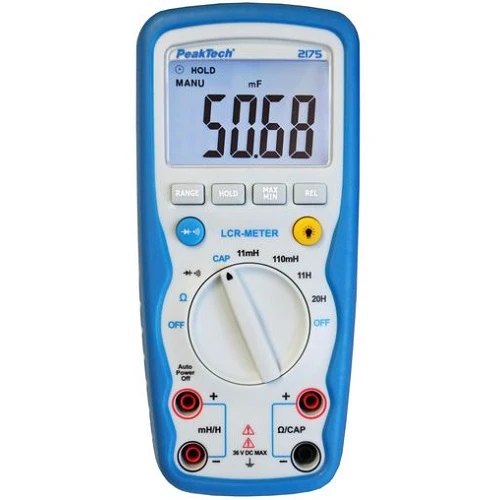

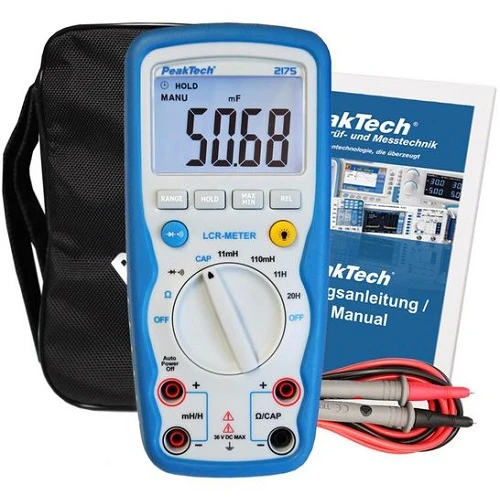

Digital LCR Meter 110MR/110mF/20H
SKU: PT2175-ET
- 122.00 €
-
- Customer price 115.90 € -5%
- Log in and get at least a 5% discount
The service is provided by Inbank AS. Read the terms
To submit Liisy payment by installment application add products to cart, choose Liisi payment by installment as the payment method and cofirm your order. After confirming the order Liisi application will appear. Calculations are approximate and may differ from conditions offered to you.
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs
This digital LCR meter is our newest development and features a large 4 ½ digit LCD display (max 11000), which provides a fast and accurate reading of measured values.
The meter is equipped with a large measurement range of up to 110 mF, which is very useful when testing capacitors in audio equipment or in the area of amateur radio.
Inductance (coils) can be measured up to 20 H and resistors up to 20 MΩ.
Additionally, the device includes a diode - and continuity test.
Through the simple operation and the technical capability of this LCR meter, it is the ideal tool in the service - and repairs.
4 1/2 digit, 27 mm LCD-display (max. 11000) with backlight and data hold
Big measuring ranges for a wide range of applications
Modern housing design with non-slip - resistant and shockproof housing
MIN/MAX-HOLD
Relative measurement
Diode - and continuity test
Auto power off u IP67 dust- and waterproof
Safety: EN 61010-1
The meter is equipped with a large measurement range of up to 110 mF, which is very useful when testing capacitors in audio equipment or in the area of amateur radio.
Inductance (coils) can be measured up to 20 H and resistors up to 20 MΩ.
Additionally, the device includes a diode - and continuity test.
Through the simple operation and the technical capability of this LCR meter, it is the ideal tool in the service - and repairs.
4 1/2 digit, 27 mm LCD-display (max. 11000) with backlight and data hold
Big measuring ranges for a wide range of applications
Modern housing design with non-slip - resistant and shockproof housing
MIN/MAX-HOLD
Relative measurement
Diode - and continuity test
Auto power off u IP67 dust- and waterproof
Safety: EN 61010-1
Resistance: 110Ω/1,1/11/110kΩ/1,1/11/110MΩ; +/-1,2% + 8 dgt.; 10mΩ
Capacitance: 11/110nF/1,1/11/110µF/1,1/11/110mF; +/-3,0% + 10 dgt.; 1pF
Inductance: 11/110mH/11/20 H; +/-2,0% + 0,2mH; 1µH
Sampling rate: 3 – 4 x per second
Operation voltage: 9 V battery
Dimensions (WxHxD): 82 x 182 x 55 mm
Weight: 400 g
Capacitance: 11/110nF/1,1/11/110µF/1,1/11/110mF; +/-3,0% + 10 dgt.; 1pF
Inductance: 11/110mH/11/20 H; +/-2,0% + 0,2mH; 1µH
Sampling rate: 3 – 4 x per second
Operation voltage: 9 V battery
Dimensions (WxHxD): 82 x 182 x 55 mm
Weight: 400 g
