PINECIL V2 USB-C 88W Soldering iron
- 59.00 €
-
- Customer price 56.05 € (-5%)
- Log in and get at least a 5% discount
PINECIL V2 is an innovative and portable mini soldering iron designed for both professionals and hobbyists. This device offers several advanced features that make it an ideal choice for all kinds of electronic projects.
Main features:
• Fast warm-up: PINECIL V2 reaches working temperature in just 12 seconds, enabling a fast and efficient work process
• Diverse power supply: The device supports a variety of power sources, including USB-C and DC5525, giving users flexibility in choosing the power source. PINECIL V2 can work with a voltage of 12-24 V and a maximum power of 88 W
• Energy-saving: PINECIL V2 is equipped with motion detection sensors that help automatically switch the device between standby and working mode
• Compact and lightweight design: The device weighs only 28 grams including the soldering tip, making it light and convenient to carry.
• Temperature range: 100 - 400 °C
Power 88 W
Temperature range 100 - 400 °C
Warm-up time ~ 12 sec
ESD safe Yes
Automatic waiting time Yes
Screen 0.69″ OLED
Processor RISC-V RV32IMAC @ 144 MHz
Memory 192 KB flash, 132 KB SRAM

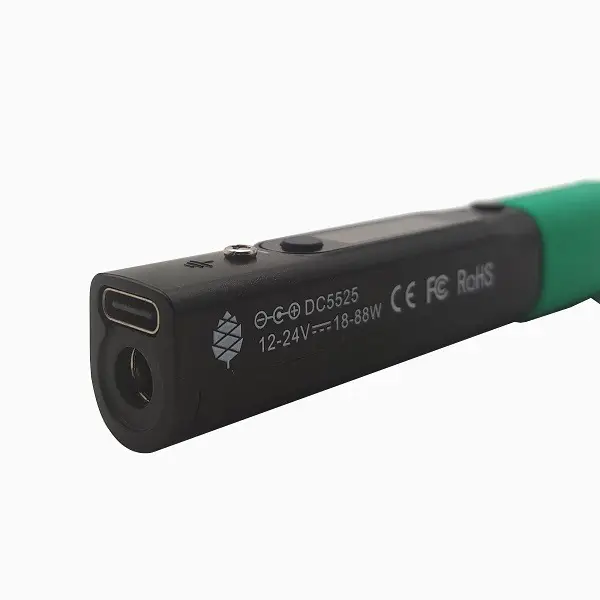

Power supply USB-C, DC5525

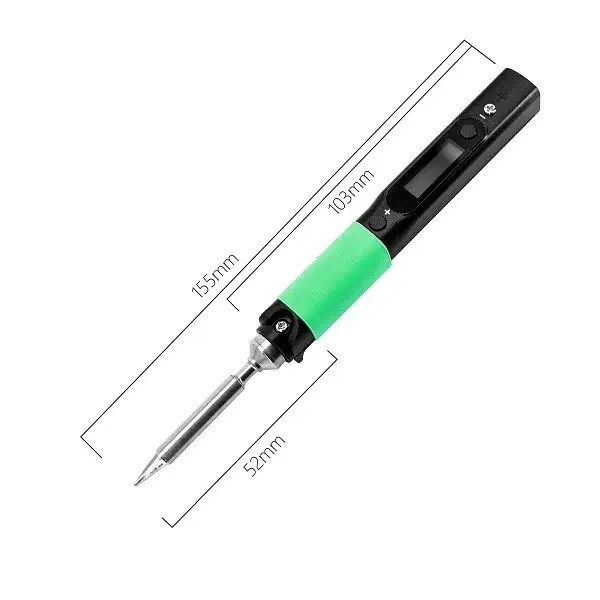

Dimensions 155mm x 12.8mm x 16.2mm
Weight 28g (with soldering tip)
