-100x100.webp)
Image is for illustrative purposes only
EL817C Optron 5kV 35V 18us
SKU: PC817
- 0.50 €
-
- Customer price 0.4750 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
162 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
0 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
7 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
11 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs

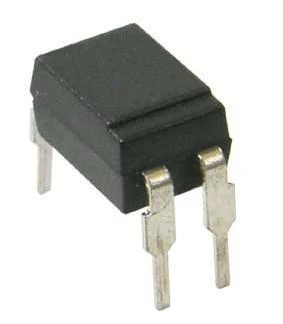

The PC817 (EL817C Optron 5kV 35V 18us) is a versatile general-purpose optocoupler, providing reliable signal transfer and electrical isolation. It consists of an infrared LED optically coupled to a phototransistor.
Key Features
- 4-pin DIP package
- Double transfer mold package (Ideal for Flow Soldering)
- High collector-emitter voltage
- Several CTR ranks available
- High isolation voltage between input and output
- RoHS directive compliant
Typical Applications
- Electrical Isolation Circuits
- Microcontroller I/O Switching
- Signal Isolation
- Noise Coupling Circuits
- Isolation Between Digital and Analog Circuits
- AC/DC Power Control
- Programmable controllers
- Facsimiles
- Telephones
Benefits and Advantages
- Versatile Voltage and Current Ratings: Supports adaptable to various circuits.
- Reliable Isolation: Designed for robust electrical isolation between input and output.
- Wide Availability: Readily available in through-hole (DIP) and surface-mount (SMT) packages, enhancing compatibility.
- Cost-Effective: Economical choice for basic optocoupler needs in consumer and industrial applications.
- Proven Performance: Trusted in the industry for general-purpose signal isolation and control tasks.
The PC817 ensures safe and noise-free transmission of electrical signals between circuits operating at different voltage levels. It is renowned for its reliability and compatibility with various industrial and consumer electronics applications. The EL817 is designed to operate in a temperature range of -40°C to 125°C, making it suitable for use in various environmental conditions, including industrial and automotive applications.
Key Features
- 4-pin DIP package
- Double transfer mold package (Ideal for Flow Soldering)
- High collector-emitter voltage
- Several CTR ranks available
- High isolation voltage between input and output
- RoHS directive compliant
Typical Applications
- Electrical Isolation Circuits
- Microcontroller I/O Switching
- Signal Isolation
- Noise Coupling Circuits
- Isolation Between Digital and Analog Circuits
- AC/DC Power Control
- Programmable controllers
- Facsimiles
- Telephones
Benefits and Advantages
- Versatile Voltage and Current Ratings: Supports adaptable to various circuits.
- Reliable Isolation: Designed for robust electrical isolation between input and output.
- Wide Availability: Readily available in through-hole (DIP) and surface-mount (SMT) packages, enhancing compatibility.
- Cost-Effective: Economical choice for basic optocoupler needs in consumer and industrial applications.
- Proven Performance: Trusted in the industry for general-purpose signal isolation and control tasks.
The PC817 ensures safe and noise-free transmission of electrical signals between circuits operating at different voltage levels. It is renowned for its reliability and compatibility with various industrial and consumer electronics applications. The EL817 is designed to operate in a temperature range of -40°C to 125°C, making it suitable for use in various environmental conditions, including industrial and automotive applications.
Isolation Voltage (rms): 5.0 kV
Collector-Emitter Voltage (VCEO): 35V (up to Date code "P7" (July 2002)), 80V (From the production Date code "J5" (May 1997) to "P7" (July 2002), products were screened by BVCEO≥70V)
Current Transfer Ratio (CTR): MIN. 50% at IF=5 mA, VCE=5V (50% to 600% at input current of 5mA)
Package: 4-pin DIP
Operating Temperature: -40°C to 125°C
Collector Current: 50mA (adaptable to various circuits)
Response Time: 18us
Dimensions: 10x10x500 mm
Collector-Emitter Voltage (VCEO): 35V (up to Date code "P7" (July 2002)), 80V (From the production Date code "J5" (May 1997) to "P7" (July 2002), products were screened by BVCEO≥70V)
Current Transfer Ratio (CTR): MIN. 50% at IF=5 mA, VCE=5V (50% to 600% at input current of 5mA)
Package: 4-pin DIP
Operating Temperature: -40°C to 125°C
Collector Current: 50mA (adaptable to various circuits)
Response Time: 18us
Dimensions: 10x10x500 mm
EL817_C_-1384499.pdf
Download
Download
