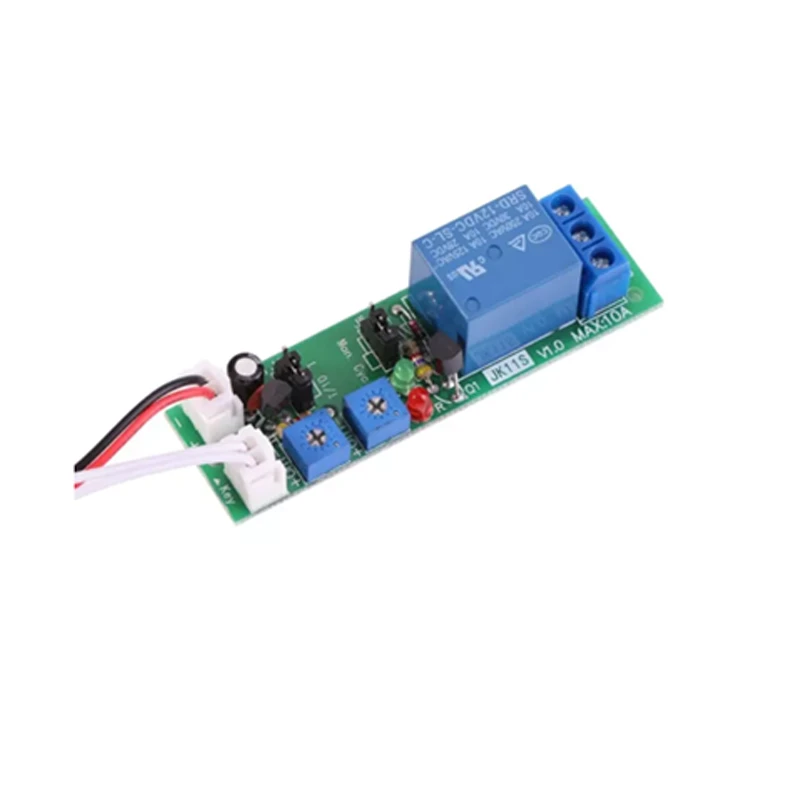

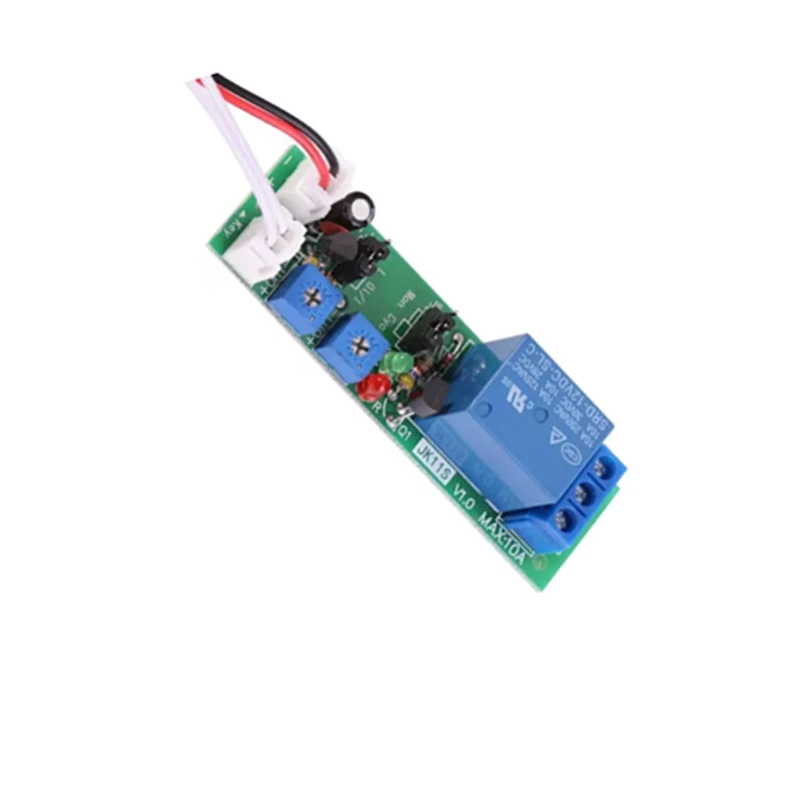

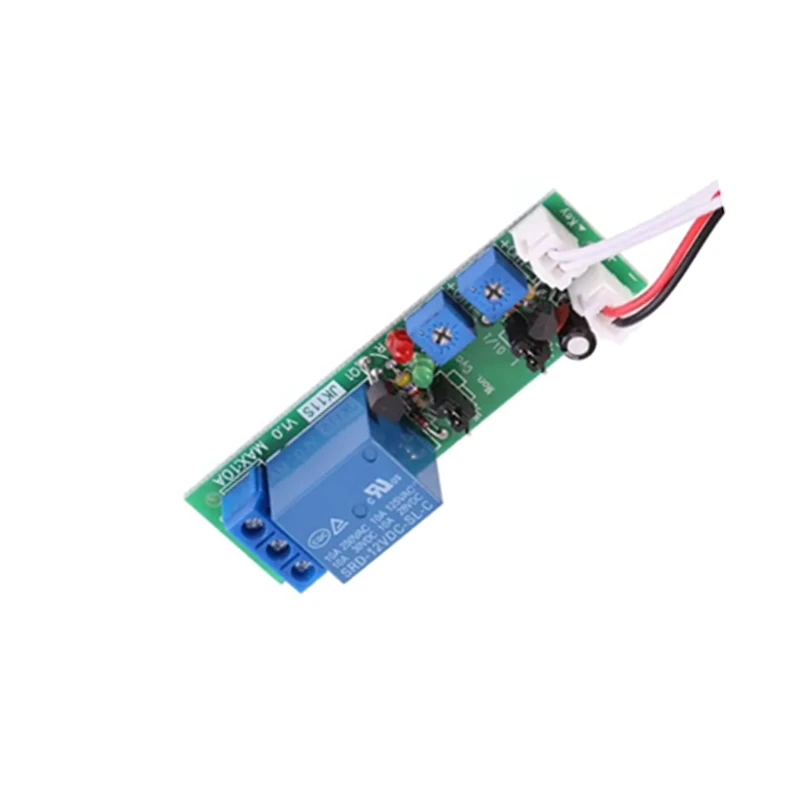

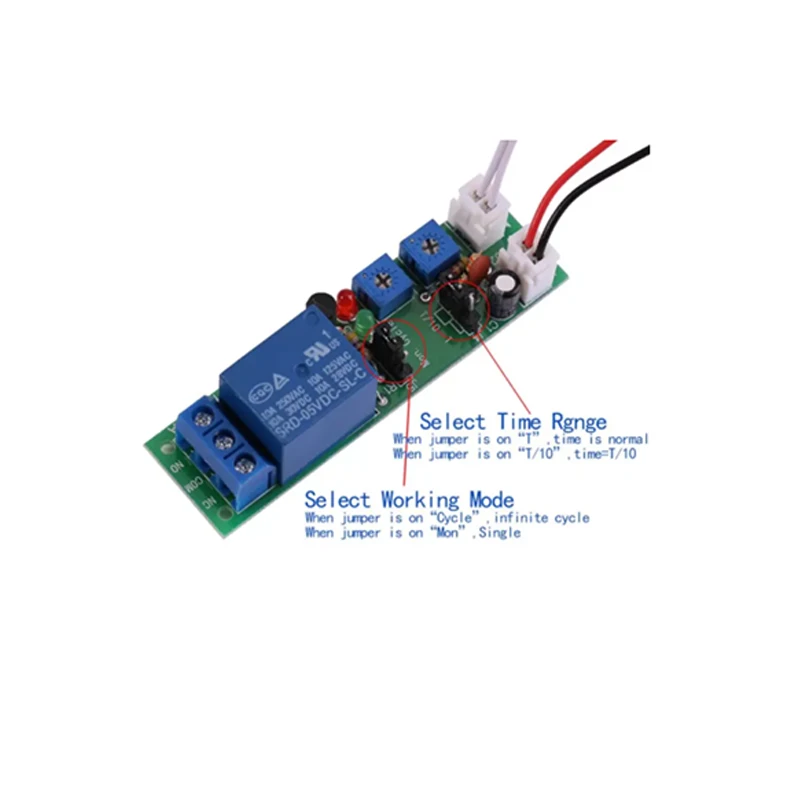

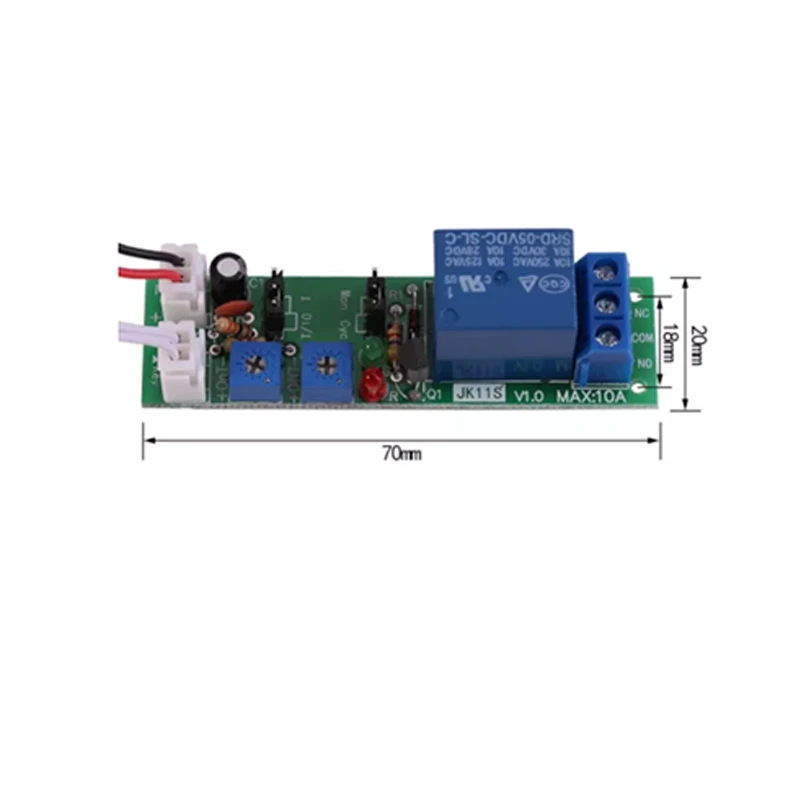

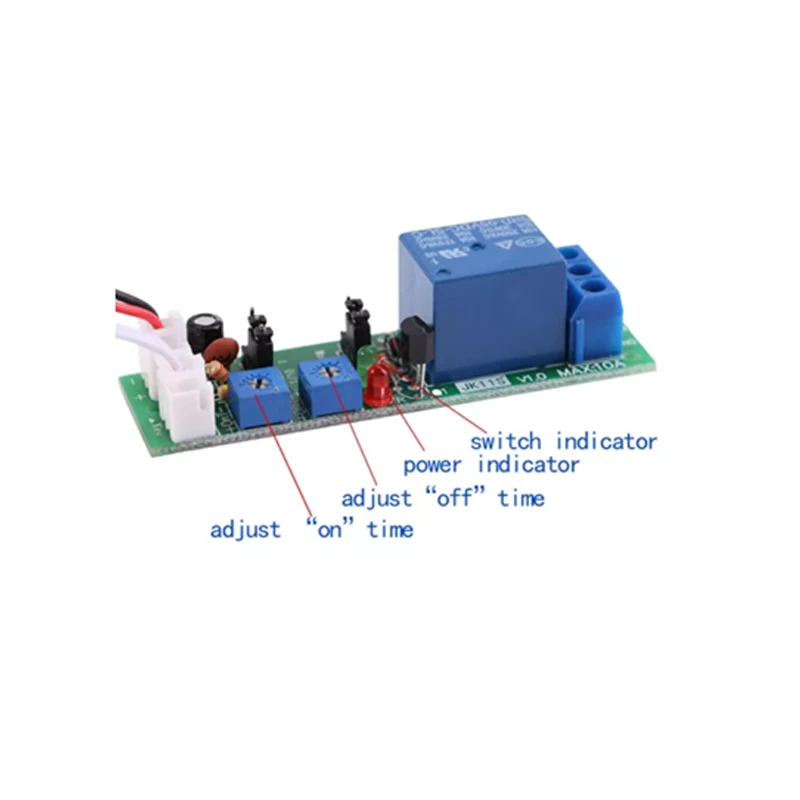

Relay module with on/off timer 1s -60min 5V

Image is for illustrative purposes only

Relay module with on/off timer 1s -60min 5V

SKU: OKYN3239-1
Okystar
Pealadu
Tallinn, Peterburi tee 90F
29 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
6 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
5 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
2 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
2 pcs

A module that allows you to schedule devices or systems to turn on and off according to a schedule. The module has a built-in timer that allows you to turn the devices on or off for a specified period of time.

Well suited, for example, for timing home electronics such as lighting or ventilation systems. It can also be useful in industrial or commercial applications where equipment or systems need to be turned on or off at specific times. It is important to note that before using the module, you must ensure that you have correctly installed and configured it according to the manufacturer's instructions.

Using the module is simple - connect the input terminals to a 5V power supply and the output terminals to the devices you want to schedule. Then set the time period you want the devices to be on or off and the module will do it automatically according to its schedule.

Input voltage: 5V DC

Output current: 10A

Switch type: NC/NO

Time range: 1 second to 60 minutes

Time mode: on/off
