Image is for illustrative purposes only

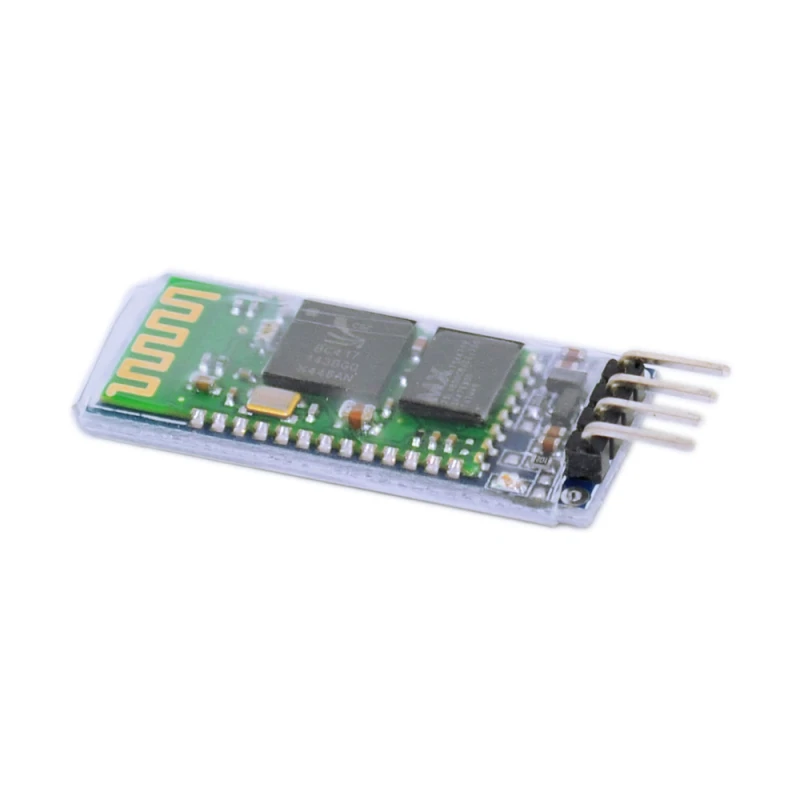

Bluetooth module HC-06
SKU: OKY3373-2
- 15.00 €
-
- Customer price 14.25 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
3 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
4 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
5 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
1 pcs
It enables devices to communicate wirelessly using the Bluetooth Serial Port Profile (SPP).
This module operates as a slave device, meaning it can only be connected to by a master Bluetooth device.
Key features and functionality:
It simplifies the process of adding Bluetooth connectivity to projects by providing a simple serial interface.
Configuration of the module (e.g., changing the baud rate, Bluetooth name, or PIN code) is typically done using AT commands sent through the serial interface.
This module operates as a slave device, meaning it can only be connected to by a master Bluetooth device.
Key features and functionality:
- Bluetooth Protocol: Bluetooth Specification v2.0+EDR
- Frequency: 2.4GHz ISM band
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Emission power: ≤4dBm, Class 2
- Sensitivity: ≤-84dBm at 0.1% BER
- Speed: Asynchronous: 2.1Mbps (Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
- Security: Authentication and encryption
- Power supply: +3.3VDC 50mA
- Working temperature: -20 ~ +75 Centigrade
- Default Baud Rate: 9600, Data bits:8, Stop bit:1, Parity:No parity
- Signal coverage: up to 10m
It simplifies the process of adding Bluetooth connectivity to projects by providing a simple serial interface.
Configuration of the module (e.g., changing the baud rate, Bluetooth name, or PIN code) is typically done using AT commands sent through the serial interface.
Bluetooth Version: Bluetooth V2.0 + EDR, Frequency: 2.4GHz ISM band, Modulation: GFSK, Transmit Power: ≤4dBm, Sensitivity: ≤-84dBm at 0.1% BER, Baud Rate: 9600, Configurable, Interface: UART, Operating Temperature: -20°C to +75°C, Dimensions: 43mm x 16mm x 7mm
HC06 Datasheet
