Fnirsi SG-004A Multifunctional Signal Generator 4-20mA 0-24V
SKU: FNIRSI SG-004A
- 219.00 €
-
- Customer price 208.05 € -5%
- Log in and get at least a 5% discount
The service is provided by Inbank AS. Read the terms
To submit Liisy payment by installment application add products to cart, choose Liisi payment by installment as the payment method and cofirm your order. After confirming the order Liisi application will appear. Calculations are approximate and may differ from conditions offered to you.
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
2 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs

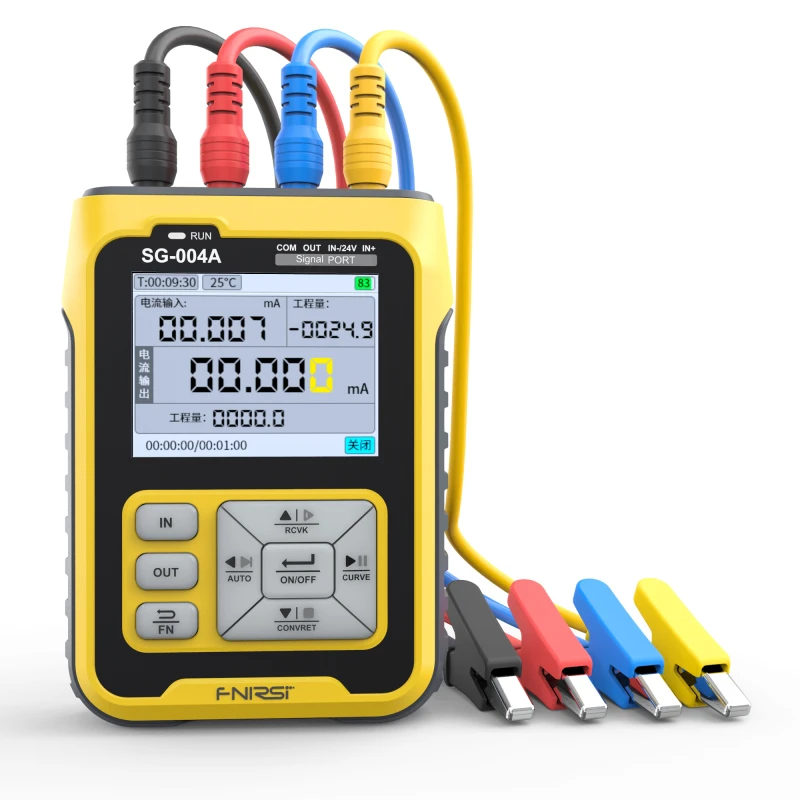

Fnirsi SG-004A is a small and light multifunctional signal generator.
Frequency Range: Up to 10kHz with a Frequency Accuracy: ± 2%.
The SG-004A has a Maximum Active and Passive Current Output: 24mA and a Maximum Voltage Output: 24V with a Resolution: 0.001V.
This signal generator is mainly used for troubleshooting PLCs, DCS and testing.
It has a large battery of 3000mAh and you will be able to use the SG-004A for up to 10 hours.
The SG-004A also has mV thermocouple input and output.
The SG-004A is easy to use and includes a 2.4" colour screen.
Product Model: SG-004A
Active current output Range: 0-24mA
Active current output Resolution: 0.01mA
Active current output Maximum load: 750Ω
Active voltage output Range: 0-24V
Active voltage output Resolution: 0.001V
Active voltage output Maximum current: 30mA
24V voltage output Drive current: ≤35mA
Input voltage measurement Range: 0-30V
Input voltage measurement Resolution: 0.001V
Current input measurement Range: 0-24mA
Current input measurement Resolution: 0.01mA
PWM output Range: 0-9999Hz
PWM output Duty cycle: 0-100%
PWM output Resolution: 1Hz
Power supply: Built-in 3.7V lithium battery
External charging: 5V 2A
Operating Environment: 0°C to 50°C, no condensation
Dimensions: 92mm x 72mm x 30mm
Active current output Range: 0-24mA
Active current output Resolution: 0.01mA
Active current output Maximum load: 750Ω
Active voltage output Range: 0-24V
Active voltage output Resolution: 0.001V
Active voltage output Maximum current: 30mA
24V voltage output Drive current: ≤35mA
Input voltage measurement Range: 0-30V
Input voltage measurement Resolution: 0.001V
Current input measurement Range: 0-24mA
Current input measurement Resolution: 0.01mA
PWM output Range: 0-9999Hz
PWM output Duty cycle: 0-100%
PWM output Resolution: 1Hz
Power supply: Built-in 3.7V lithium battery
External charging: 5V 2A
Operating Environment: 0°C to 50°C, no condensation
Dimensions: 92mm x 72mm x 30mm
