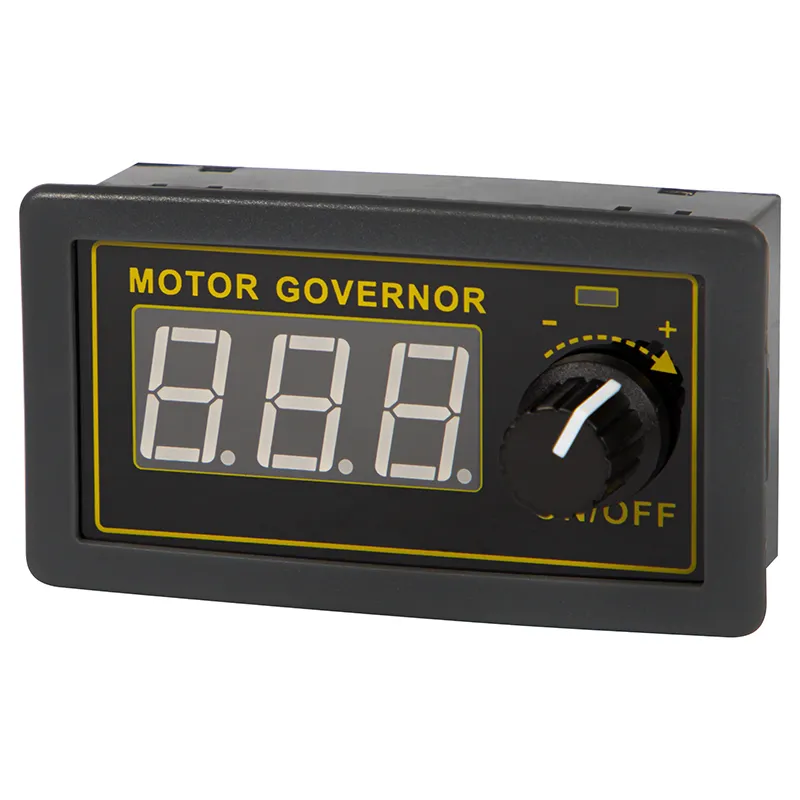

Motor speed regulator module PWM 5-30V 150W
- 16.00 €
-
- Customer price 15.20 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
Pulse speed controller for motors (PWM). Works with DC motors with a voltage of 5V to 30V. Convenient way to adjust the operating speed (potentiometer integrated with the switch). A safe soft-start system slowly accelerates the electric motor to the value set with the potentiometer, eliminating the risk of damaging it. The compact design is equipped with a clear display with measurement indication and an LED signaling diode (informing about turning the receiver on or off). Simple assembly, no soldering required.
The most important features:
Pulse speed controller for electric motors (PWM).
Works with DC motors with a voltage of 5V to 30V.
Switch integrated with potentiometer (1% step change in speed).
Soft-start protection (slow acceleration of the engine to a set value).
Easy-to-read display showing the current engine speed.
LED indicator informing about turning the receiver on or off.
Very simple assembly.
Power supply (voltage): 5-30V DC (direct current)
Rated current: 5A
Maximum current: 15A
Maximum receiver power: 150W
Default frequency: 20KHz
Working frequency: 1KHz to 99KHz
Accuracy: +- 1%
Switch integrated with potentiometer
Potentiometer with built-in regulator (0-100%)
Smooth adjustment range (every 1%)
LED indicator (receiver on/off)
Clear display
Dimensions: 7.9 cm x 4.3 cm x 2.6 cm
