MONO/CCT/RGB LED receiver Zigbee+RF 12-24V 12A(6A) MiBoxer

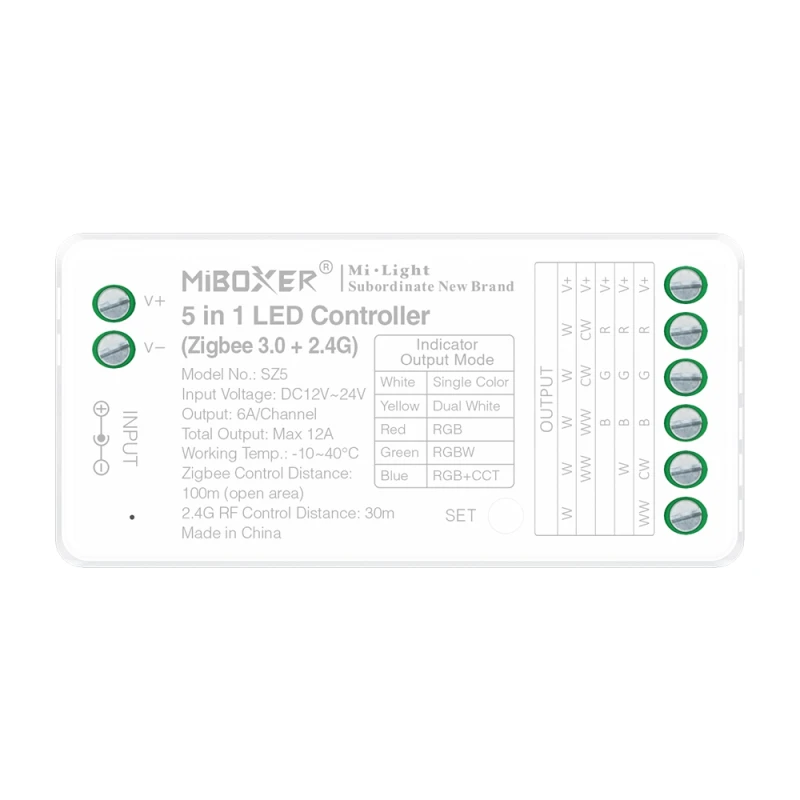

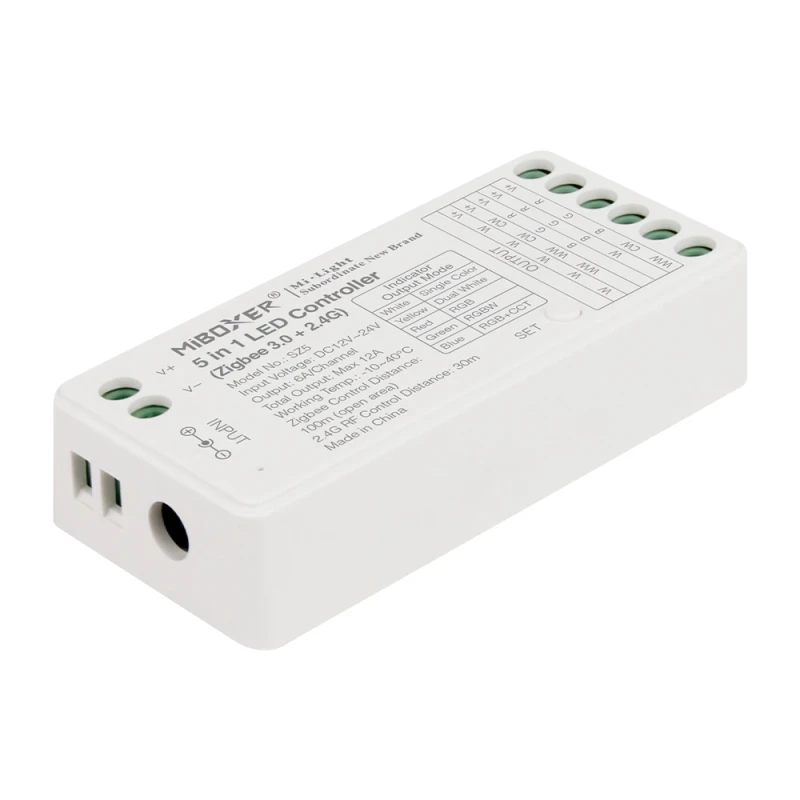

The MiBoxer SZ5-ZR is a versatile 5-in-1 LED controller designed for a wide range of LED lighting applications. It combines Zigbee 3.0 and 2.4GHz RF wireless technology for exceptional performance and reliability.

General Information

The SZ5-ZR provides the flexibility of individual or multi-zone control, making it ideal for residential and commercial lighting projects. When paired with a MiBoxer Zigbee 3.0 gateway, it unlocks advanced features such as wireless dimming, remote control operation, timer settings, group control, and captivating music rhythm synchronization. This controller is also compatible with 2.4G RF remotes and supports DMX512 control when used with an optional DMX512 LED transmitter.

Key Features

- 5-in-1 Functionality: Supports a wide range of LED types, including single color (MONO), color temperature adjustable (CCT), RGB, RGBW, and RGBCCT LED strips.

- Zigbee 3.0 Standard Protocol: Ensures exceptional power efficiency and robust anti-interference performance.

- 2.4GHz RF Remote Compatibility: Seamlessly controlled using compatible Mi-Light/MiBoxer 2.4GHz series remotes.

- Mesh Network: Enhances signal reliability and extends control distance by intelligently forwarding signals through other controllers.

- Automatic Synchronization: Maintains consistent dynamic modes across multiple controllers for a unified lighting experience.

- Dynamic Modes: Features 18 built-in dynamic modes with captivating jumping and gradual changing effects (available via 2.4G remote control).

- DND Function: Includes a convenient Do Not Disturb mode, particularly useful in power failure areas to conserve energy.

- App Control: Supports intuitive TUYA SMART app control via a Zigbee 3.0 gateway.

- Voice Control: Seamlessly integrates with popular third-party voice control systems like Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu, and Xiaomi (requires Zigbee 3.0 gateway).

- DMX512 Control: Supports professional DMX512 control with a DMX512 LED transmitter.

- Adjustable Parameters: Offers precise adjustment of RGB, brightness, and color temperature settings.

- Automatic Forwarding: Automatically forwards the remote control signal to another controller, effectively extending the remote control distance.

Applications and Benefits

- Home Lighting: Perfectly suited for creating personalized and immersive lighting scenes in living rooms, bedrooms, and kitchens.

- Commercial Lighting: An excellent choice for shops, restaurants, and hotels, providing flexible control over the lighting ambiance to enhance customer experience.

- Smart Home Integration: Seamlessly integrates with your smart home ecosystem via Zigbee 3.0, enabling convenient voice and app control.

- Easy Installation: User-friendly design ensures a straightforward and hassle-free setup and operation.

Important Information

- Please note that the controller requires a Zigbee 3.0 gateway to enable app and voice control functionalities.

- It supports a wide input voltage range of DC12-24V, ensuring compatibility with a variety of LED power supplies.

- The device is certified with CE, EMC, and RED standards, guaranteeing safety and regulatory compliance.
