MONO/CCT LED control receiver RF 12A 12-24V Mi Boxer

Image is for illustrative purposes only

MONO/CCT LED control receiver RF 12A 12-24V Mi Boxer

SKU: E2-RF
MiBoxer
Pealadu
Tallinn, Peterburi tee 90F
18 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
4 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
2 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

The E2 series controllers are designed to control both single-colour and dual-colour systems which are 12/24V. Up to 12A current per channel (colour) is allowed.


This RF controller can accept signals from MiBoxer 2.4GHz remotes and gateways.

The mode can be changed between 1/2 colour via the button located on the topside of the device.

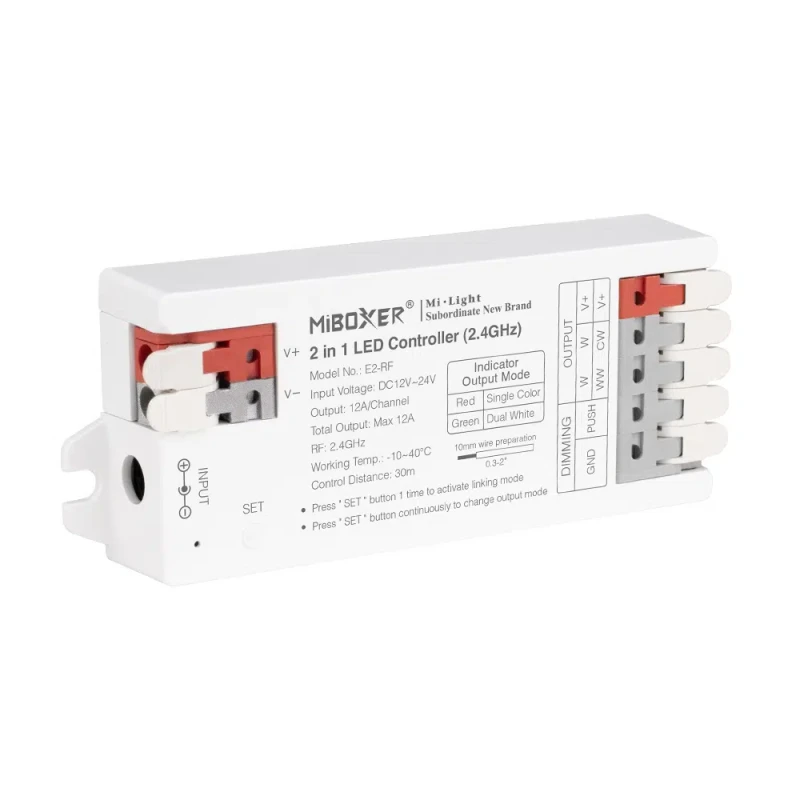

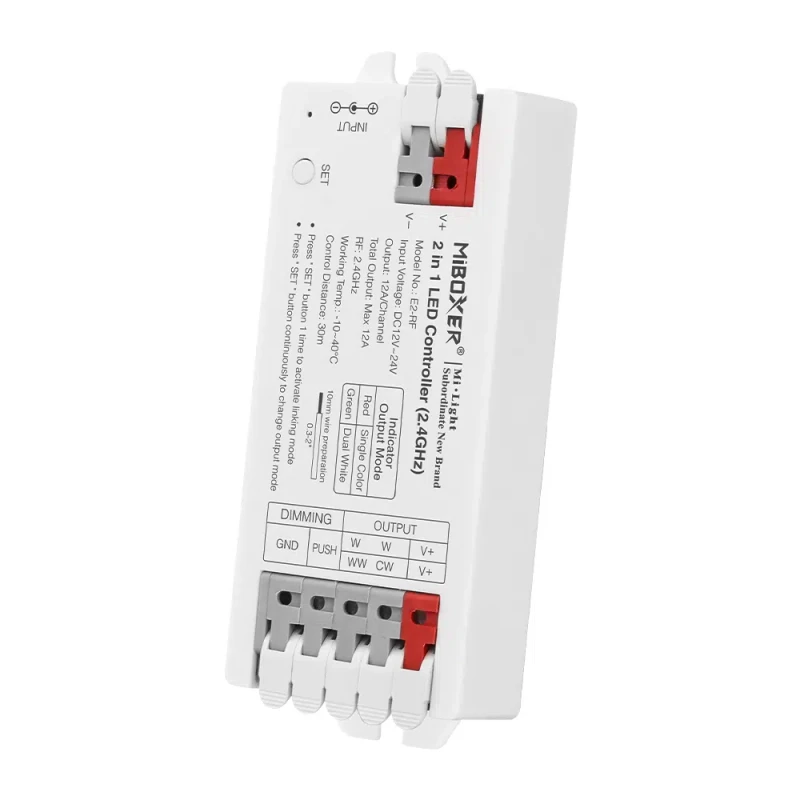

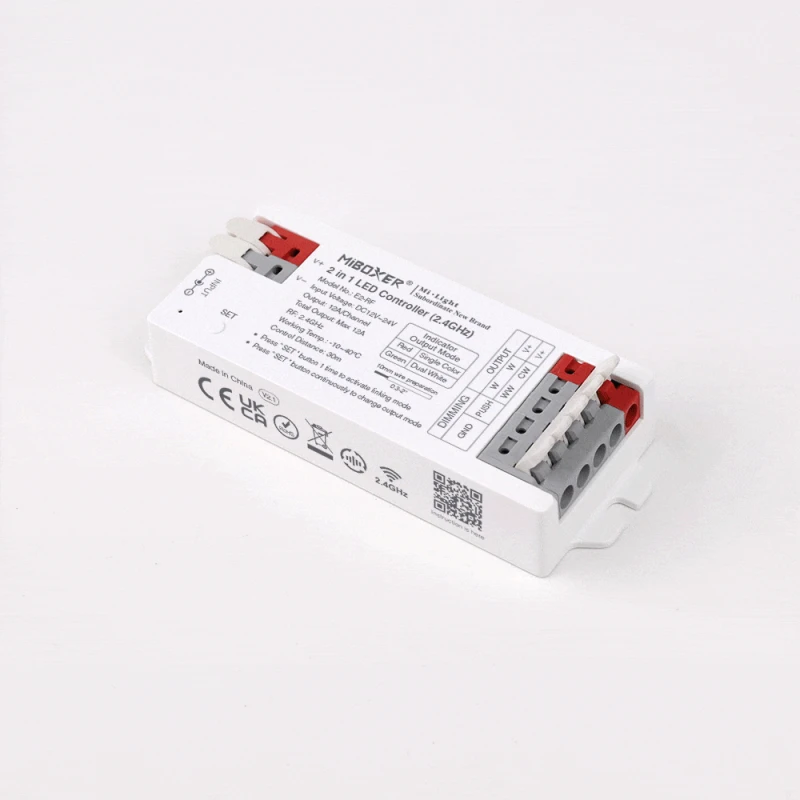

Product Name:  2 in 1 LED Controller (2.4GHz)

Model No. : E2-RF


Input Voltage: 12-24V

Total Output: 12A (12A per channel)

RF: 2.4GHz

Control Distance: 30m

Working Temperature: -10~40°C

E2-RF Manual EN
Download
