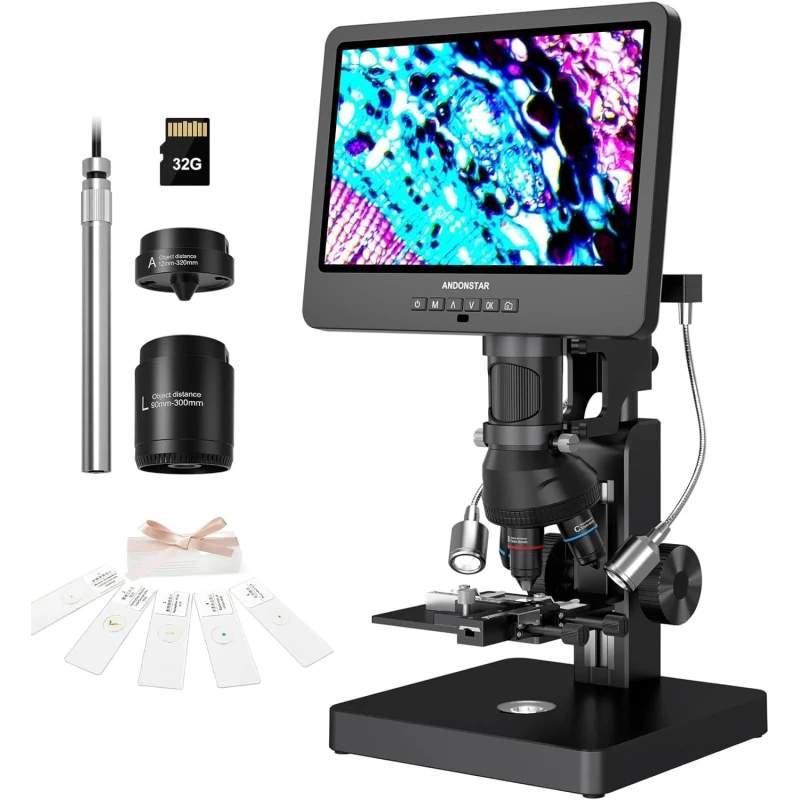

Microscope Andonstar AD269S, 10.1', 170x, 4MP

Image is for illustrative purposes only

Microscope Andonstar AD269S, 10.1', 170x, 4MP

SKU: AD269S
Pealadu
Tallinn, Peterburi tee 90F
2 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs

Microscope AD269S, which has a extremely wide magnification rate (up to 5100x combined zoom and up to 170x optical), this model is one of Andonstar flagship models, which can be used for almost everything.

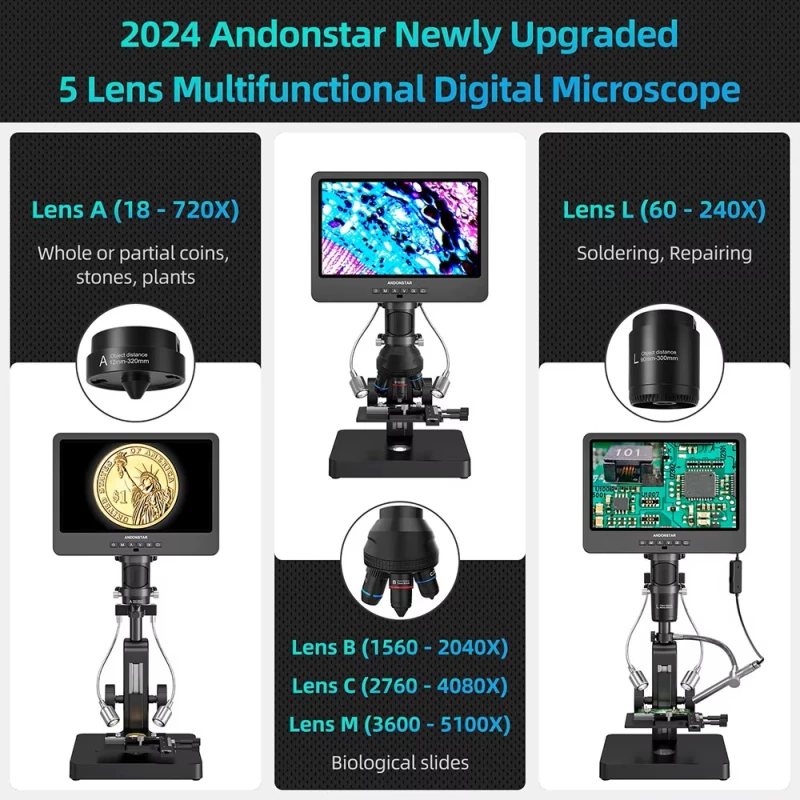

Comes with a selection of lenses:

Lens A (6-240x): Coins, plants, geology

Lens L (20-70x): Soldering, general inspection, repair work

Lens Set: Lens B (520-1360x), Lens C (920-1360x), Lens M (1200-1700x): Laboratory work, biological slide inspection

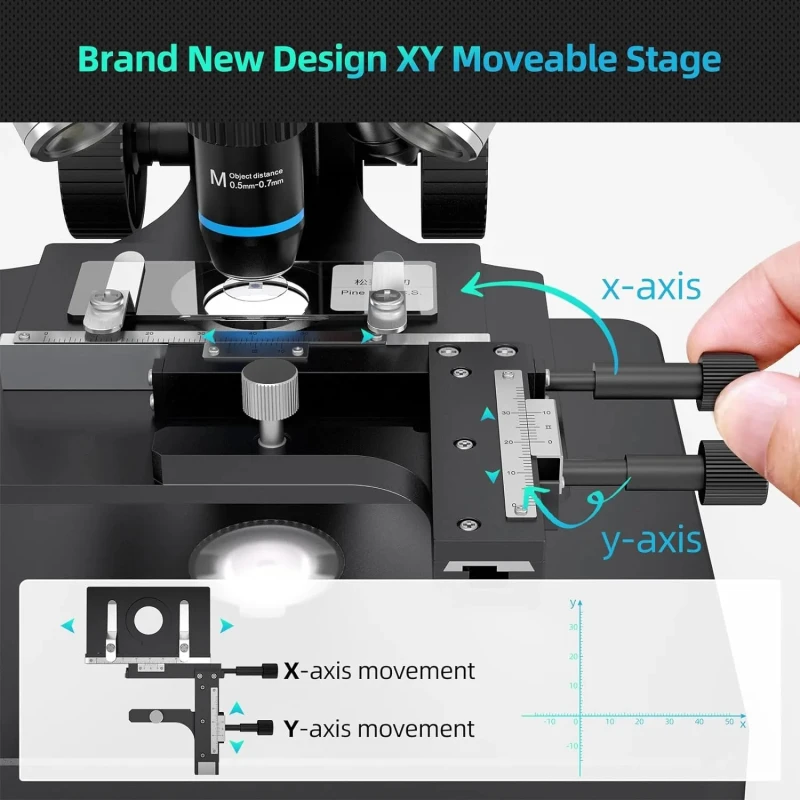

This model is our only with a easily movable X-Y platform, which is great for smaller objects and also for inspecting biological slides

AD269S also supports Measuring software (see files), which can give you for example distance between two points or area calculations

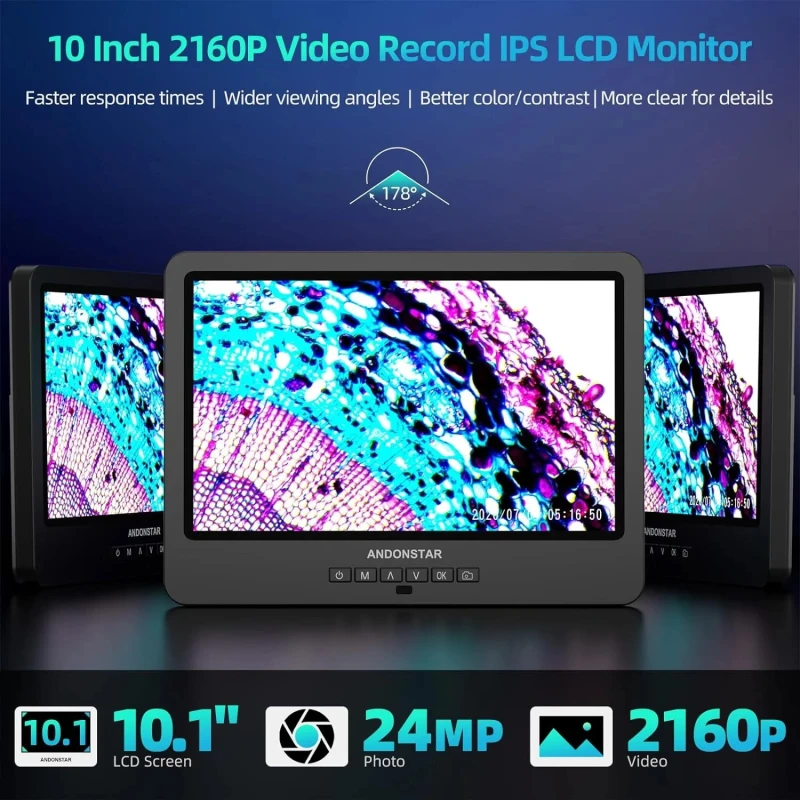

Equipped with a 10.1 inch screen (1280x800) and has a rigid metal stand. Included are 2 gooseneck flashlights, to get better, more stable results.

Via the HDMI socket, the real-time video can be shown on external monitors/tv (endoscope live-view not supported)

Stand height: 32cm maximum

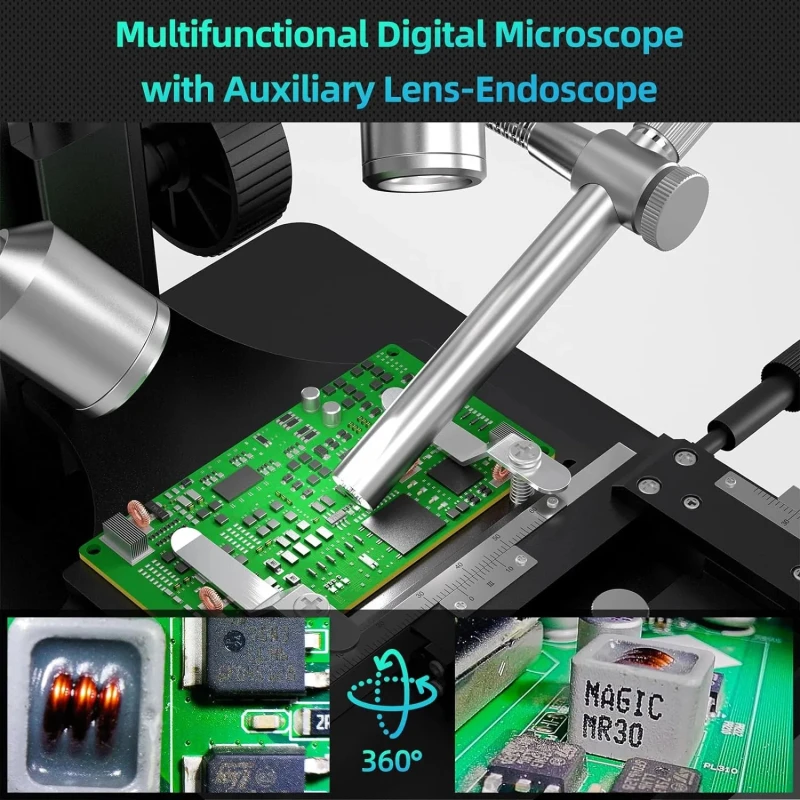

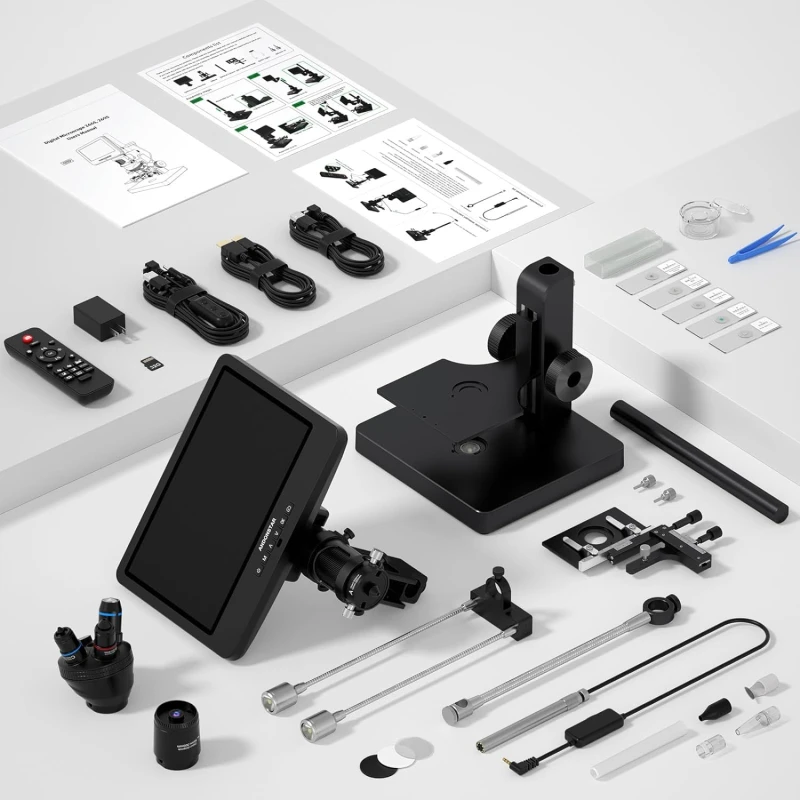

Included in the set: Microscope+stand, lenses: A/L, lens set: B/C/M, endoscope+stand, 2x gooseneck flashlights, X-Y baseplate, 3x backgrounds for slide stand, remote, power supply, HDMI/USB/Power cables, 5x Biological slides, tweezers, 32GB SD Card, user manual

Model:  AD269S

Manufacturer: Andonstar

Image sensor: 4MP

Video resolution: 4K (24FPS), FHD (60FPS), HD (120FPS)

Video format: MP4

Magnification rate: up to 5100x (combined), up to 170x (optical)

Image resolution: up to 24MP (Interpolated)

Image format: JPG

Focusing distance: Minimum 0.5mm (Lens M), Maximum: 240mm (Lens A)

Screen size: 10.1 inches (2880x2160)

Micro SD: up to 32GB (Recommended class 10)

Voltage: 5V

Manual (EN)
Download
Software (Measure)
Download
