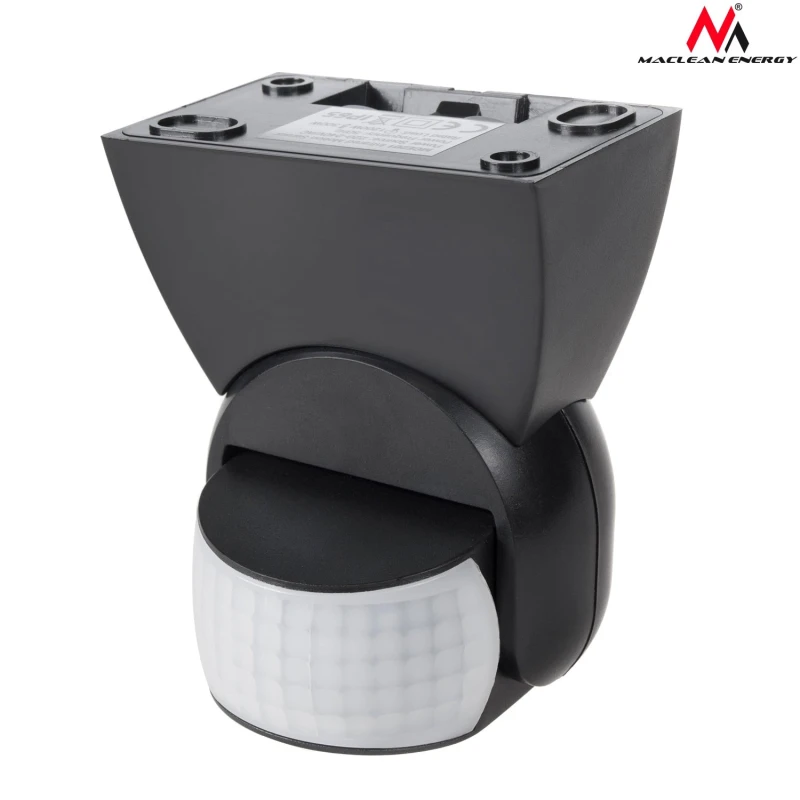

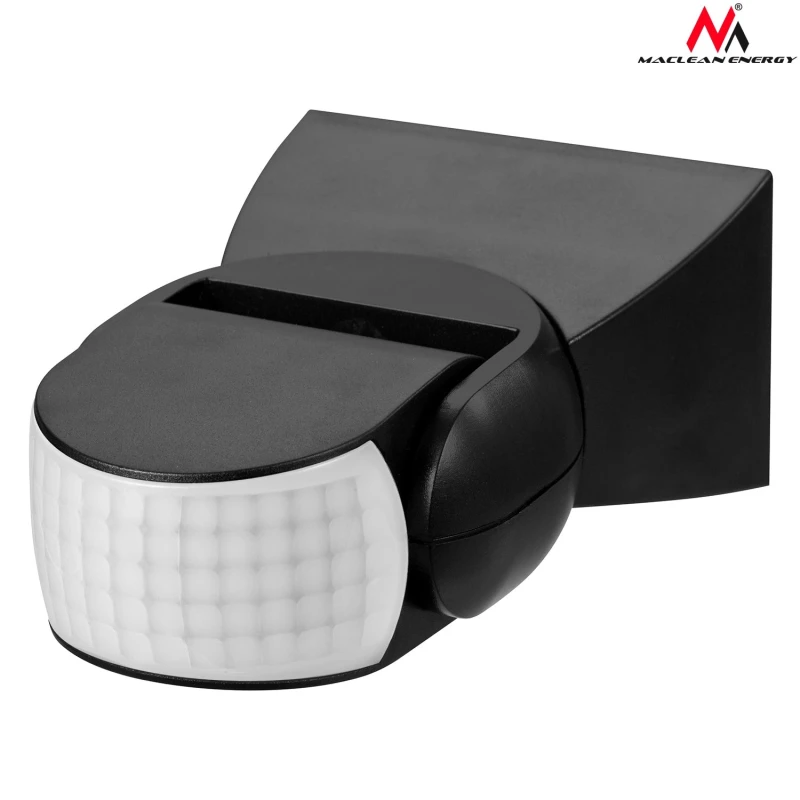

Motion sensor black 230VAC 300W/1800W IP65 12m
- 13.00 €
-
- Customer price 12.35 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
• The motion sensor turns on when an object emitting infrared radiation is detected and turns off after a certain period of time.
• This device uses the infrared radiation emitted by a person as a signal to start working when someone is in the detection area.
• Detection angle: 180 °
• The sensor is used for automatic control of lighting or other electrical devices.

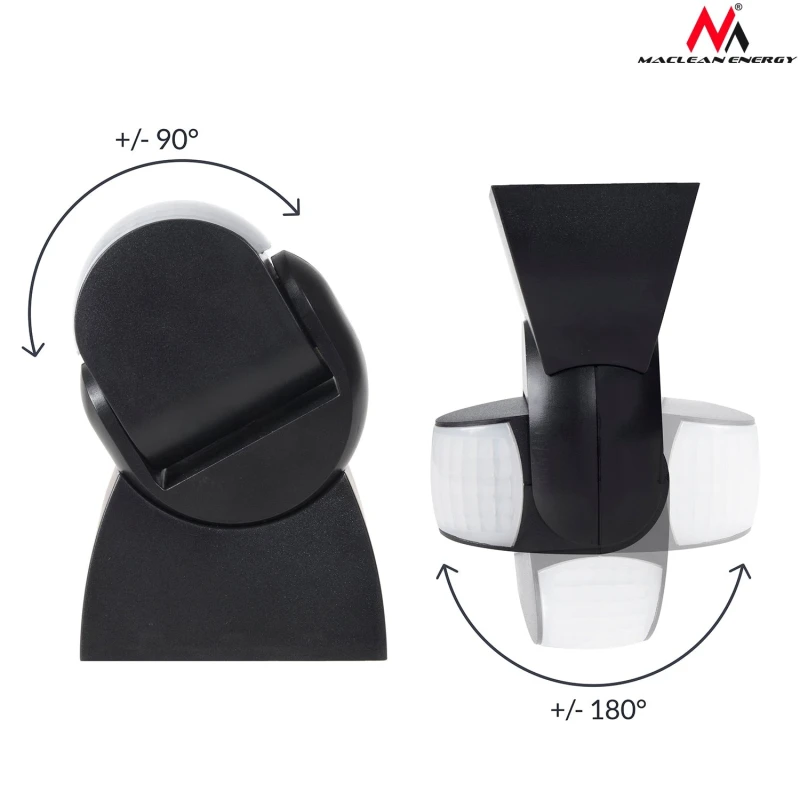

• Mechanical vertical and horizontal adjustment.

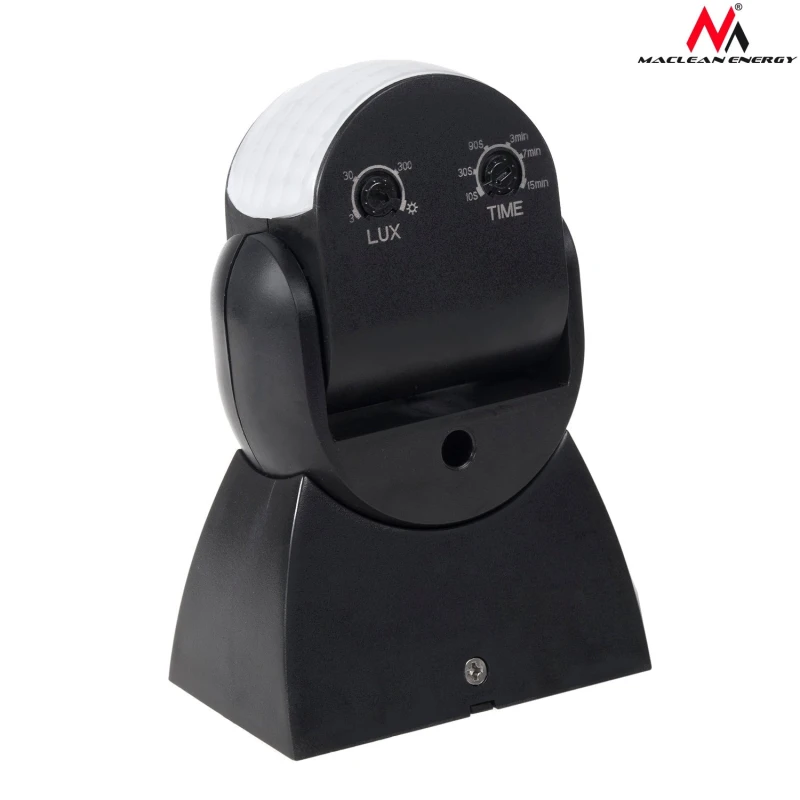

• The sensor has 2 buttons: the LUX button allows you to adjust the limit of light intensity (thanks to this feature we can adjust it to work only from dusk to dawn) and the TIME button, which allows you to adjust the hold time.
• Also works with LED lighting
• High degree of protection IP65
The new generation infrared sensor has high stability, nice, modern and practical appearance, wide working voltage range, easy installation and wide detection range. Automatically detects day and night light. Used SMT technology that meets European standards. It is designed for automatic lighting control in homes, gardens, hotels, offices, stairwells, corridors, basements, toilets, etc.
- Power: 220-240V/AC
- Detection angle: 180 °
- Supply frequency: 50 / 60Hz
- Detection range: max 12 m (<24 °C)
- Light intensity: <3-2000LUX (regulation)
- Delay: min 10 s ± 3 s / max 15 min ± 3 min
- Operating temperature: -20 / + 40 °C
- Operating humidity: <93% relative humidity
- Power consumption: ~ 0.5W
- Max. load: 1200 W (resistive load) / 300 W (inductive load)
- Installation height: 1.8-2.5m
- detected movement speed: 0.6-1.5 m/s
- Sensor dimensions (mm): 52/80/124
