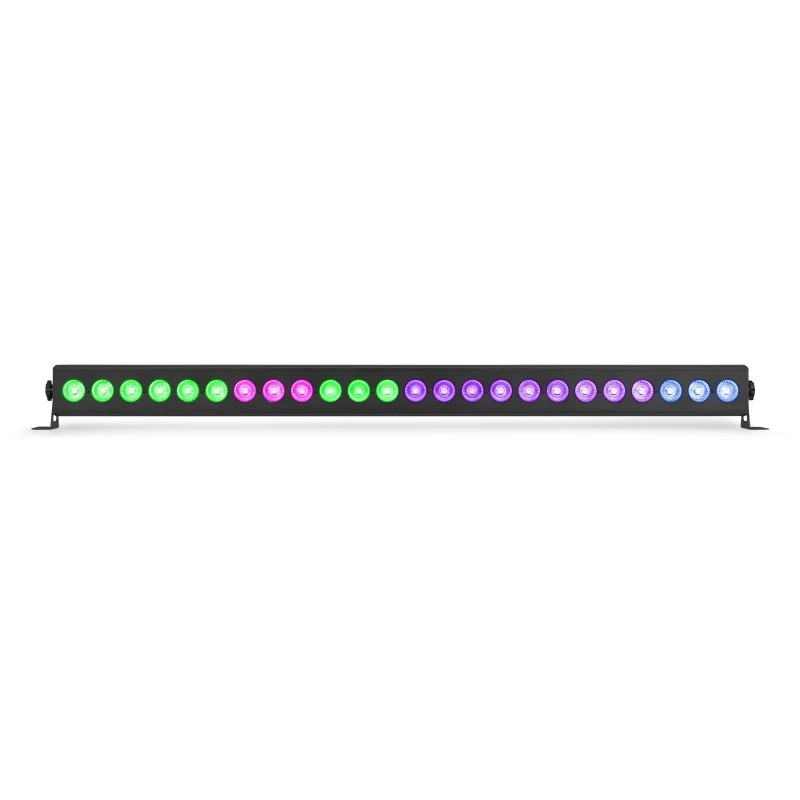

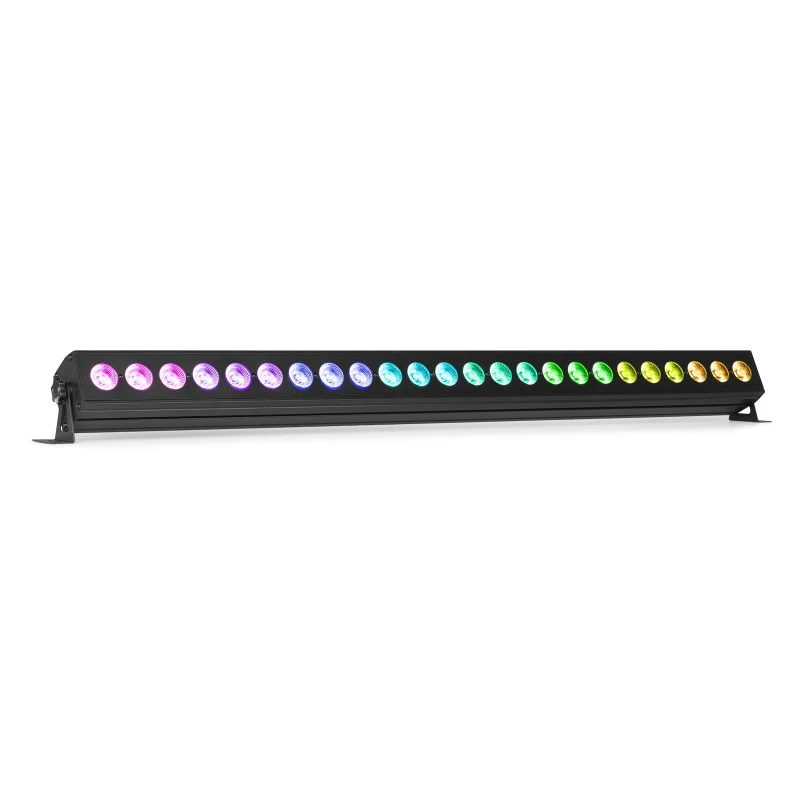

LED bar LCB246 24x6W RGBAW-UV

Image is for illustrative purposes only

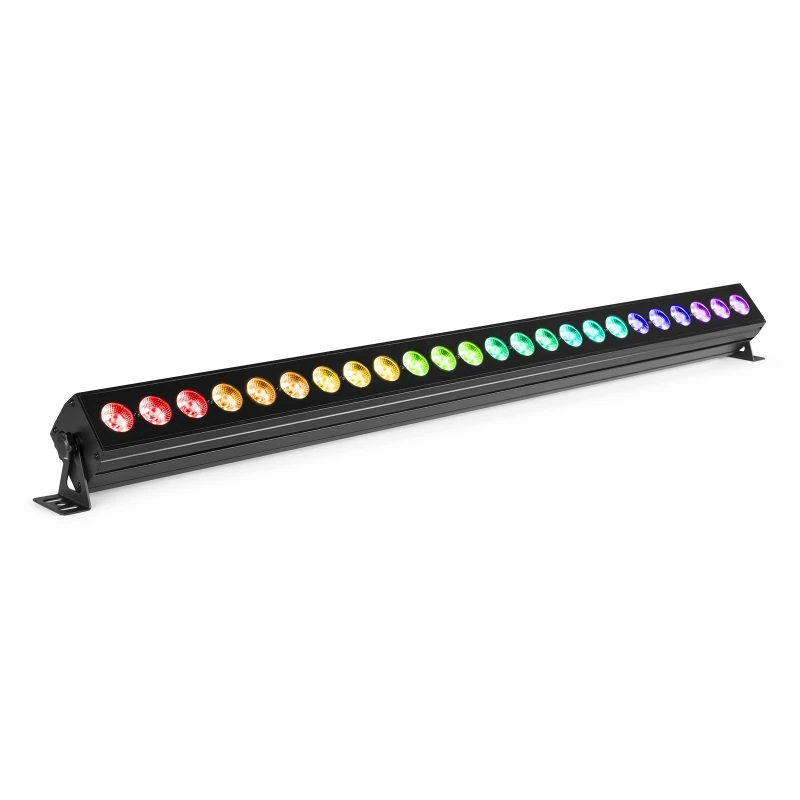

LED bar LCB246 24x6W RGBAW-UV

SKU: TR150.708OS
BeamZ
Pealadu
Tallinn, Peterburi tee 90F
0 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
0 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

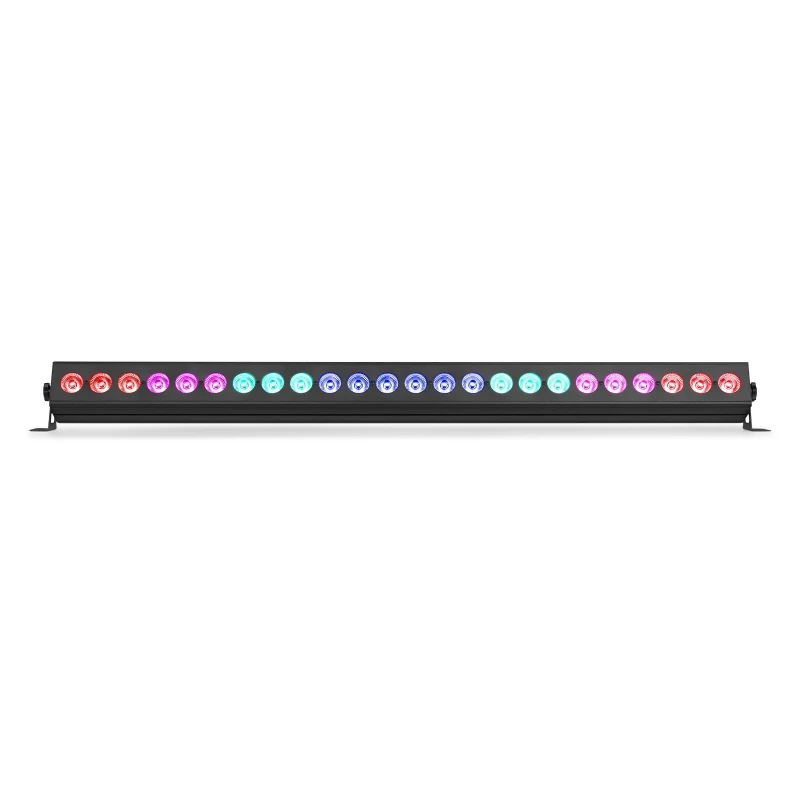

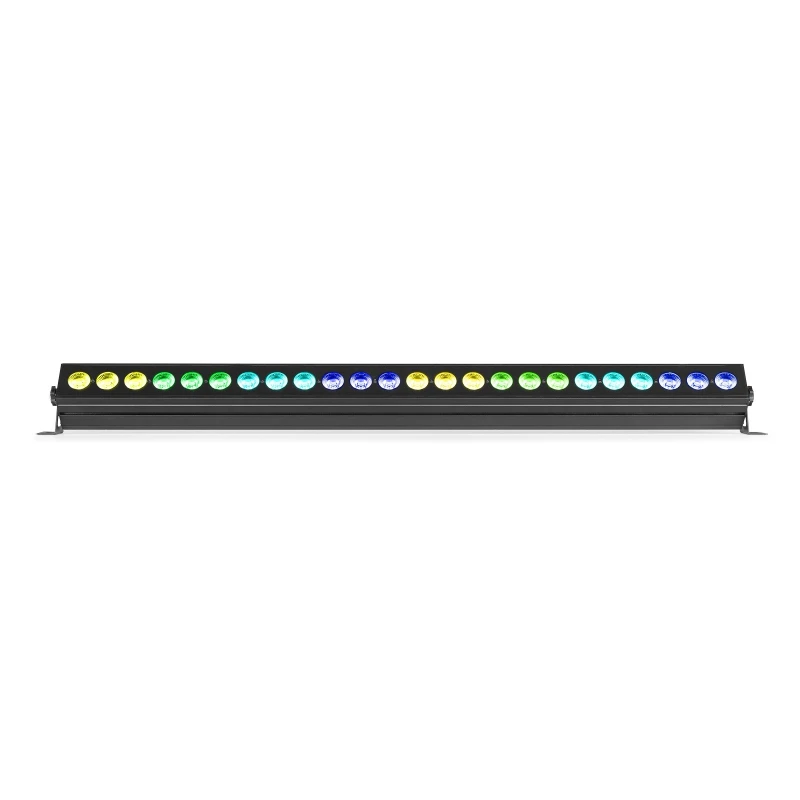

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.


24x 6W 6-in-1 LEDs

RGBAW-UV colour mixing

8 separate controllable sections

Pre-programmed shows

17 auto mode programs

Sound activated

8, 11, 20, 36 or 74 DMX channels

DMX and Stand-alone mode

Master/slave function

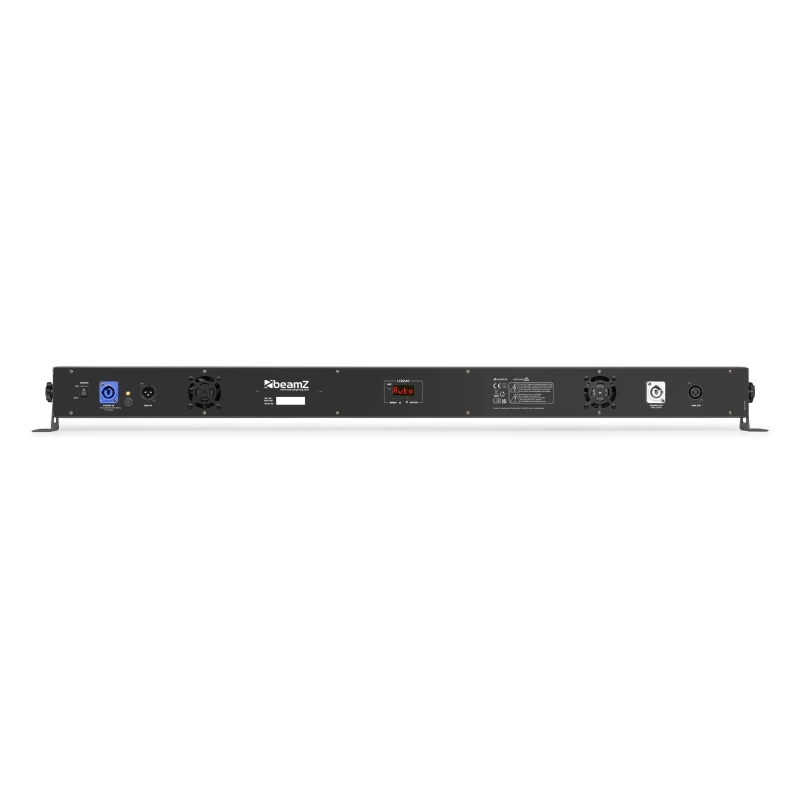

DMX in/output via 3-pin XLR

Control panel with LED display

Aluminium housing

Powerconnector in/output

Product colour Black

Light source 6-in-1 LED

LED colours Red, Green, Blue, Amber, White, Ultra Violet

LED power 6W

Quantity of LEDs 24

Beam angle 20

Field angle 33

Illuminance 5.675 lx @ 1m

Flash rate per second 1 - 20Hz

Modes Automatic programs, DMX, Manual, Master/Slave

DMX channels 8, 11, 20, 36, 74

DMX connection 3-pin XLR

Daisy chain Yes (max. 8 bars)

IP rating IP20

Cooling Fan

Display LED

Power plug P-Con

Power consumption 1.70 - 0.90A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 1010 x 75 x 76mm

Weight (kg) 3.65

Included accessories Mounting bracket, Power cable

TR150.708OS Manual EN
Download
TR150.708OS Quick Guide EN
Download
