Digital Clamp Meters KewTech 203 DC/AC 40/400A

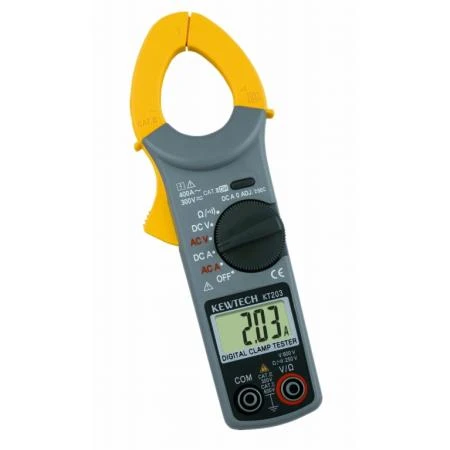

Image is for illustrative purposes only

Digital Clamp Meters KewTech 203 DC/AC 40/400A

SKU: KEWTECH KT203
Kyoritsu
Pealadu
Tallinn, Peterburi tee 90F
3 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
1 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
1 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
1 pcs

Measures current up to 400A AC.

Measures voltage up to 600V AC.

Resistance Measurement.

Continuity buzzer.

33mm jaw size.

Data Hold.

Display: 4000 counts.

Sleep Function to extend battery life.

Complies to IEC61010-1 CAT. III 600V, UL3111 &VDE0411 300V.Digital Clamp Meters

Range Measuring Range Accuracy

40 A 0 - 40.00 A ±3.0% rdg ±8dgt

400 A 15.0 - 299.9 A ±3.5% rdg ±6dgt

300.0 - 400.0 A ±4.0% rdg ±6dgt

DC Current (A) Auto Ranging

Range Measuring Range Accuracy

40 A 0 - 40.00 A ±3.0% rdg ±8dgt

400 A 15.0 - 299.9 A ±3.5% rdg ±6dgt

300.0 - 400.0 A ±4.0% rdg ±6dgt

AC Voltage (V) Auto Ranging (50/60Hz)

Range Measuring Range Accuracy

400 V 0 -400 V ±2%rdg±5 digits

600 V 150 - 600 V

DC Voltage (V) Auto Ranging

Range Measuring Range Accuracy

400V 0-400V ±1.5%rdg±5 digits

600V 150-600V

Conductor Size Approx. 30 mm diameter max.

Display Liquid crystal display (maximum count: 4199).

Overrange Indication “OL.” is shown on the display.

Sample Rate About 2.5 times per second.

Operating Temperature 0 - 40°C.

Power Two R03 or equivalent(DC1.5V)batteries.

Dimensions 187(L) x 68.5(W)x 38.5(D) mm.

Weight Approx. 200g(including batteries.
