Raspberry Pi 5 Case Black SC1160
- 19.00 €
-
- Customer price 18.05 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1

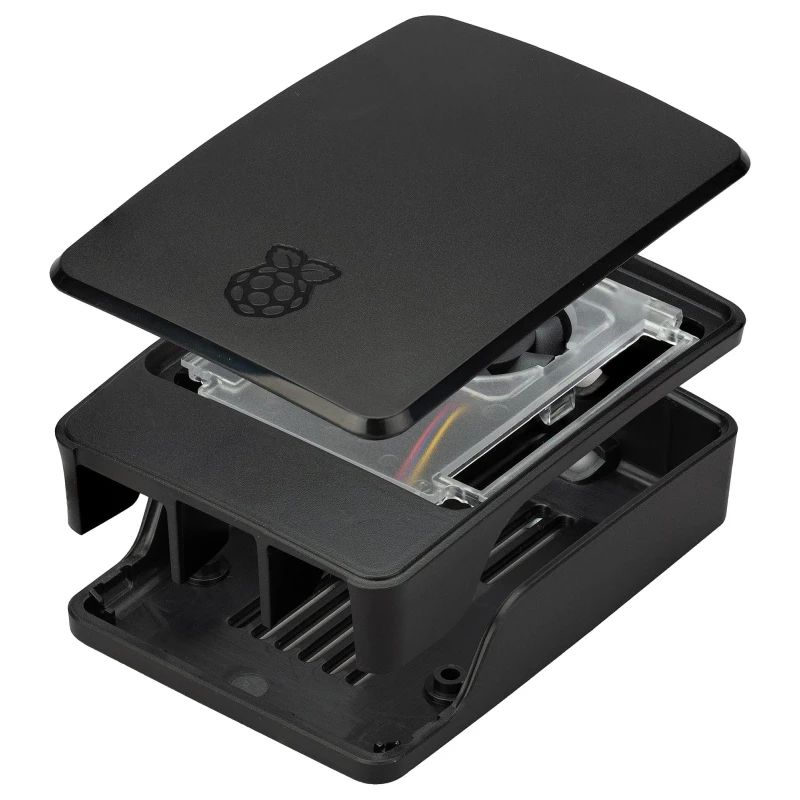

Raspberry Pi 5 case, which is a four-part, clip-together enclosure with an active cooling fan. The integrated temperature-controlled cooling fan connects to the fan connector on the Raspberry Pi 5.
The 12mm × 17mm × 4mm heatsink with a self-adhesive pad improves heat transfer from the processor.
The easily removable lid exposes the fan, as well as the breakout slot for cables and GPIO connections.
Integrated mounting features allow for case stacking.
HAT devices can be mounted to the enclosure with standoffs and GPIO header extenders (not included).
The case includes four silicone feet.
Input voltage: 5V DC, power is supplied through the four-pin fan header on Raspberry Pi 5.
Maximum airflow: 2.79 CFM, maximum fan speed 8000 RPM +/- 15%.
For Use With : Raspberry Pi 5 Model B Boards
External Width : 98.5mm
External Height: 33mm
External Depth: 70.3mm
