UT685B KIT TDR cable tester
- 159.00 €
-
- Customer price 151.05 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
The UNI-T UT685B-KIT TDR cable tester is a powerful kit specially designed for testing and inspecting various cable types. Whether it's coax, twisted pair, or PoE network cables, this kit allows you to reliably evaluate the quality and performance of your cables.
With the UT685B-KIT, you can not only accurately determine the length of a cable, but also determine the cable sequence. In addition, it allows you to check the functionality of PoE (Power over Ethernet) according to the applicable standards. This way, you can ensure that your cables meet the requirements and provide reliable data transmission.

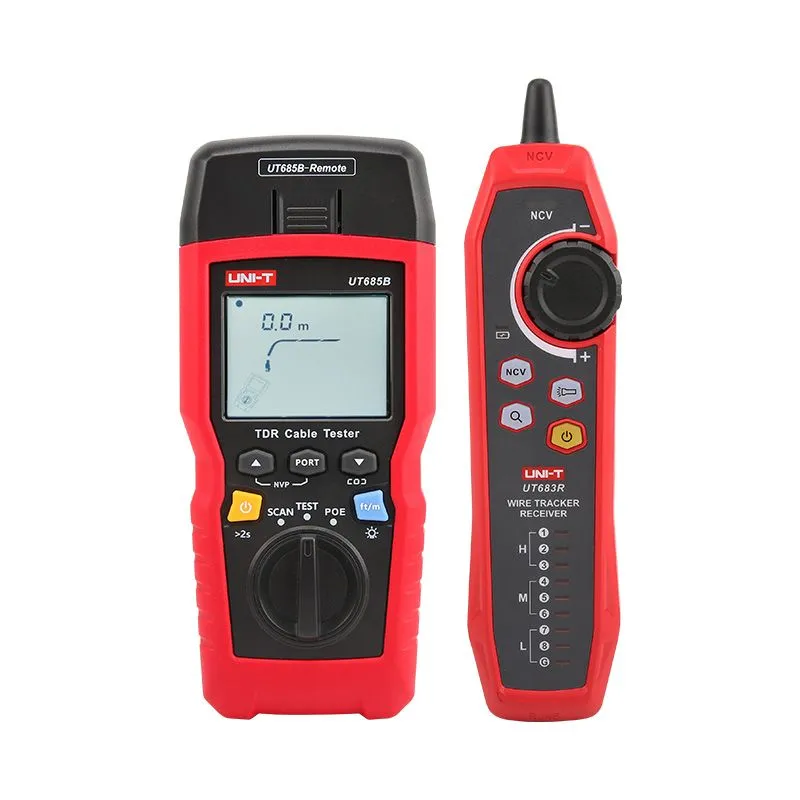

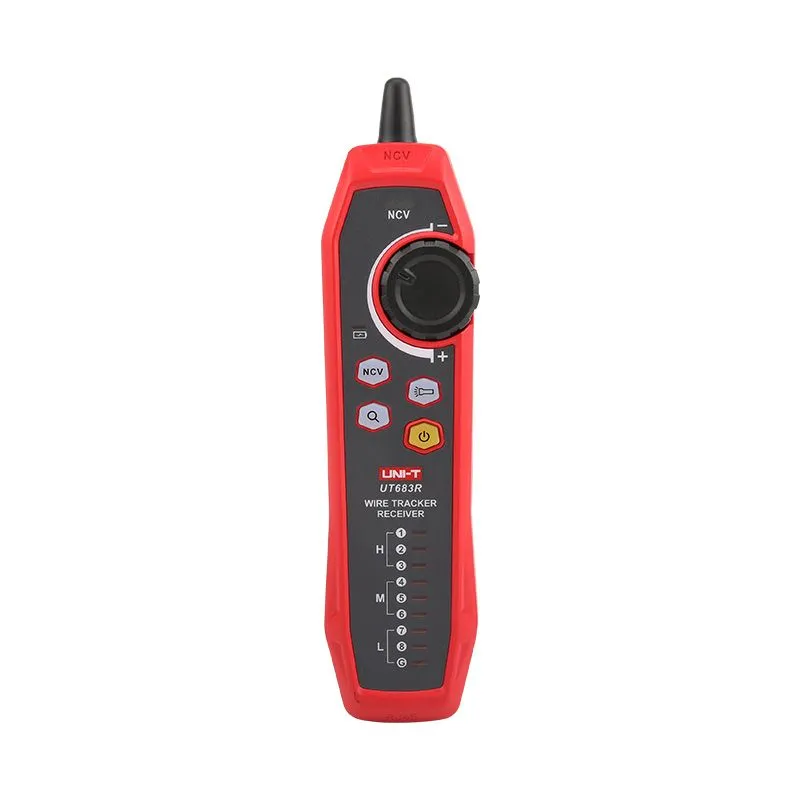

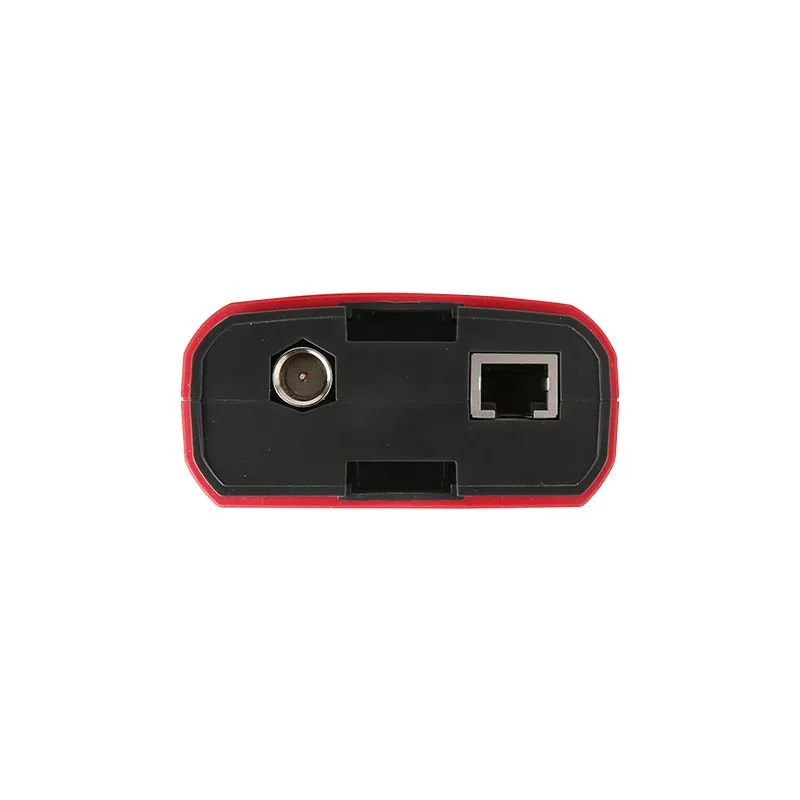

The UT685B KIT consists of the UT685B cable tester and UT683R receiver, which together provide efficient and comprehensive cable testing. The kit is supplied with appropriate adapters to cover a wide range of cable types.
Additionally, the cable tester has convenient features such as a built-in flashlight to help you in dark environments, as well as a backlit display that makes it easy to read the results even in low-light conditions. This makes the UT685B-KIT an indispensable tool for technicians working on complex installations.

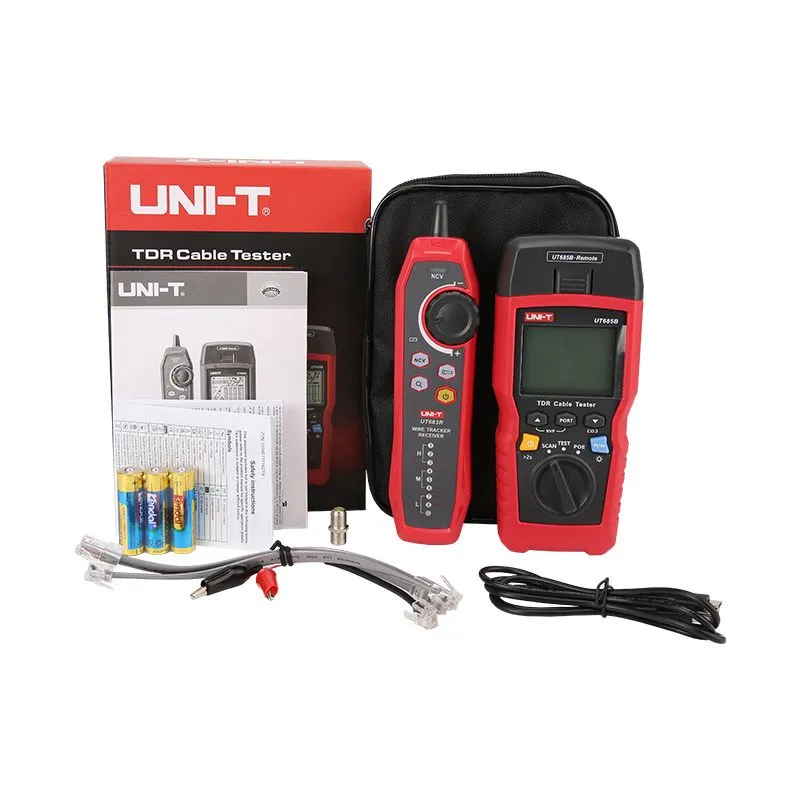

Another useful feature of the UT685B-KIT is the ability to track cables both visually and audibly. This allows you to quickly and easily identify and track the path of cables in a complex network.Scope of delivery: UT685B Tester UT683R Receiver RJ45 adapter cable RJ11 adapter cable RJ11 adapter cable (adapted to alligator clip) F plug to F plug connector Carrying case BatteriesCable types:
1. UTP (unshielded cable),
2. FTP (aluminum foil shielded cable);
3. SSTP (double shielded network cable);
Coaxial cable: 50Ω, 75Ω, 93Ω
Cable length range 500 m
Resolution: 0.33 m
Accuracy: ± 4% or 0.6 m
Detection of POE capacity
POE standard: 802.3AF
POE standard: 802.3AT
Ethernet port test √
Cable location √
The port is flashing √
Input protection 70VDC
Screen 2.8" LCD
Automatic shutdown after about 10 minutes
Power AAA alkaline batteries x4
