Image is for illustrative purposes only

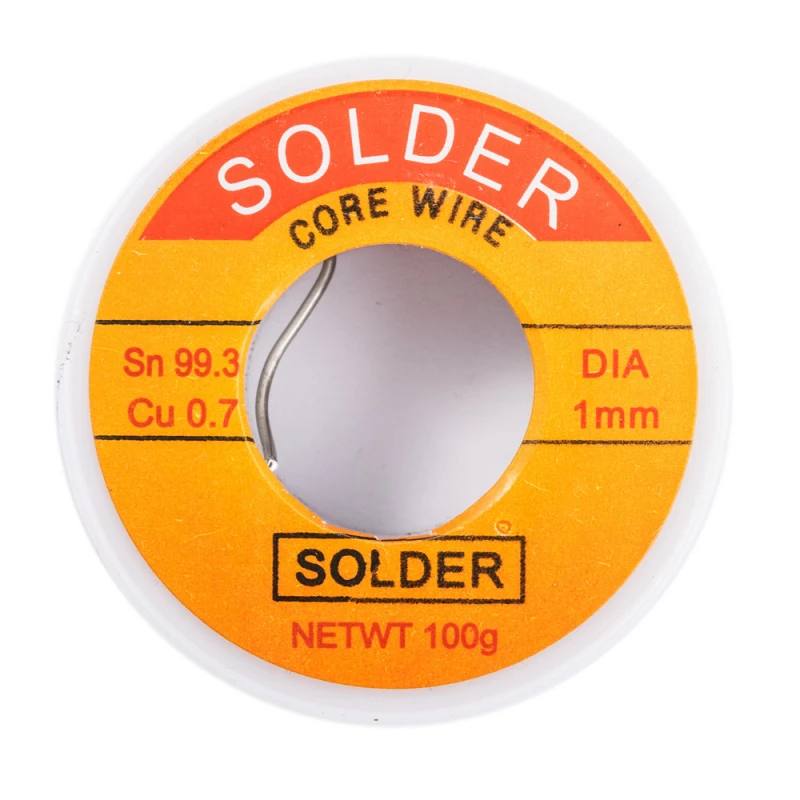

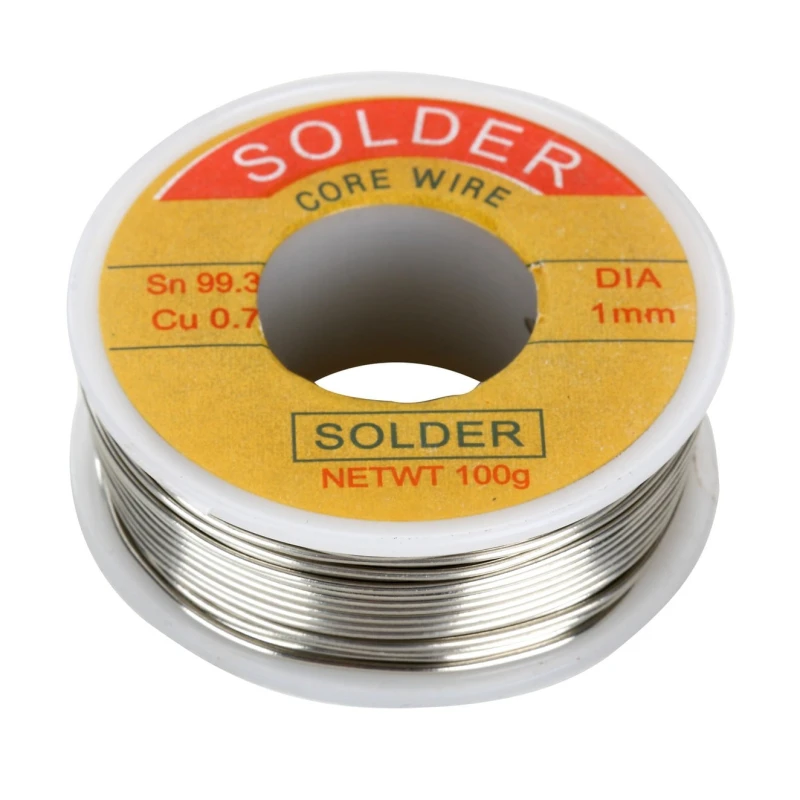

Solder wire 1.0mm 100g Sn99.3% Cu0.7% flux 2%
SKU: ZD-162 100G
- 12.00 €
-
- Customer price 11.40 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
255 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
10 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 pcs
ZD-162 100G Solder Wire, composed of Sn99.3% Cu0.7% with 2% flux, is a "Jootetina" (Solder wire) product. Here's a summary of product details:
Key Features and Specifications:
General Properties:
Safety and Handling:
Key Features and Specifications:
- Alloy Composition: Sn99.3% / Cu0.7%. This is a lead-free alloy.
- Flux: Typically contains rosin flux, often between 1.5% - 3.0%. Some may use a synthetically refined resin flux.
- Diameter: 1.0mm
- Weight: 100g
- Melting Point: 227°C
- Working Temperature: 350-450°C
- Flux Type: Rosin Core
- Model Number: ZD-162
- Brand: Zhongdi (ZD)
General Properties:
- Good solderability, insulation resistance, and non-corrosive.
- Minimal spattering and fumes during soldering.
- Suitable for electrical and electronics applications, including circuit boards and electronics devices.
- Offers excellent solder joint reliability, superior joint strength, and excellent thermal & mechanical fatigue resistance.
Safety and Handling:
- Store in a cool, dry, and non-corrosive environment, away from fire.
- It is recommended to use within 12 months of purchase.
- Wear appropriate personal protective equipment (PPE) when handling and soldering, and work in a well-ventilated area.
