Twilight switch 2..1000Lx 16A external sensor IP65

The AZHS-230V twilight switch provides automatic, light-sensitive control for lighting and electrical devices, offering both convenience and significant energy savings. It intelligently activates devices at dusk and deactivates them at dawn.

General Product Overview

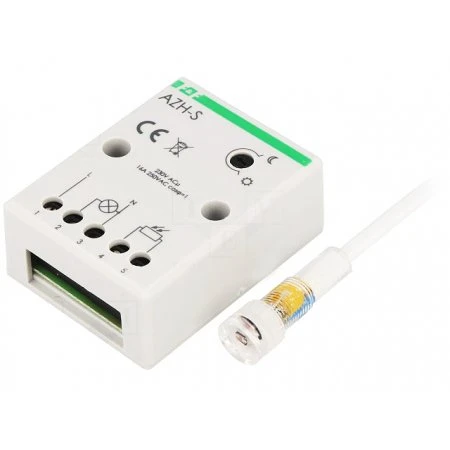

The AZHS-230V twilight switch is expertly designed to automatically control lights or other 230V devices based on ambient light levels. Suitable for wall mounting, it includes a dedicated external light sensor for optimal performance.

Key Features

- Automatic Operation: Automatically switches lighting at dusk and dawn for effortless control.

- Adjustable Sensitivity: Offers adjustable sensitivity via a convenient selector.

- External Sensor: Features a discrete external sensor ensuring accurate light detection. The sensor is designed for discreet installation in a 10mm wall hole.

- High Switching Power: Boasts a maximum operating current of 16A.

- Wide Operating Temperature: Operates reliably in temperatures ranging from -25°C to 50°C.

- IP Rating: Suitable for both indoor (IP20) and outdoor (IP65) applications, providing versatile use.

- SPST-NO Output: Equipped with a Single Pole Single Throw Normally Open (SPST-NO) relay.

- Screw Terminals: Electrical connections are simplified with the use of screw terminals.

Applications and Benefits

- Outdoor Lighting: Perfectly suited for controlling street lights, garden lights, and signage.

- Security Lighting: Automates security lights, enhancing safety and security at night.

- Energy Saving: Minimizes energy consumption by ensuring lights operate only when needed.

- Convenience: Automates lighting operations, eliminating manual intervention.

- Vandalism Resistance: The discreet sensor installation helps prevent vandalism.

Important Information

This twilight switch is designed for single-phase installation and should be installed by a qualified electrician, adhering to all local standards. The system is engineered to resist short-term fluctuations in lighting intensity, ensuring consistent and reliable performance. The device is typically housed in a durable plastic container suitable for indoor use, while the external sensor unit is specifically designed for outdoor installation.
