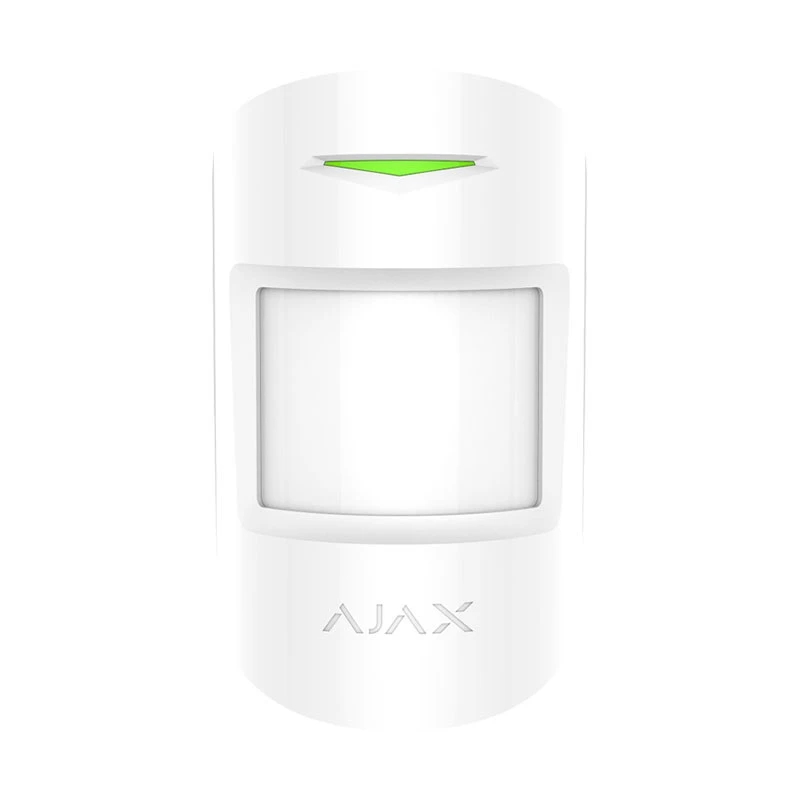

Ajax MotionProtect White

Image is for illustrative purposes only

Ajax MotionProtect White

SKU: AJAX-5328
Ajax Systems Inc

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors, windows and other places likely of intruder entry.

Authentication to prevent forgery
Jamming detection and communication channels encryption
Tampering alarm

Sensitivity

Adjustable, 3 levels

Recommended

installation height

2.4 m

Power supply

Batteries: CR123A, 3 V

Battery life

Up to 5 years

Jeweller radio technology









Communication range with detectors: up to 1,700 m in the line of sight

Two-way communication between devices

Operating frequencies: 868.0 - 868.6 MHz

Self-adjusting RF output power: up to 20 mW

Block encryption based on AES algorithm

Detector polling period: 12−300 s

Frequency hopping

Temperature sensor

Available

Operating

temperature range

From -10°С to +40°С

Operating humidity

Up to 75%

Anti-sabotage




Protection against fraud

Jamming detection

Tamper-resistant

Remote configuration

and testing

+

Dimensions

110 × 65 × 50 mm

Weight

86 g

AJAX-5328 Manual EE
Download
