Image is for illustrative purposes only

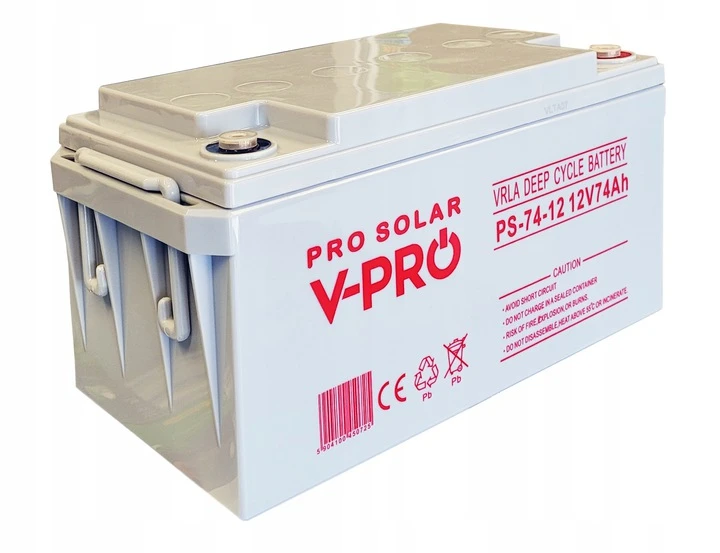

Deep discharge battery 12V 74Ah for solar panels
- 199.00 €
-
- Customer price 189.05 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1
The DEEP CYCLE series battery is designed, among other things, to power solar and wind power systems, motor homes, emergency power systems (UPS, automation). It has been designed and constructed so that it can be deeply discharged before being recharged.
The most important features are:
1. it has a reinforced design with lead plates, high-density active materials, and a slightly stronger electrolyte than standard batteries. As a result, it can be used in applications where it cycles.
2. automatic sealing system. When the pressure inside the battery is too high, the valves open, safely venting the resulting gas outside the case and preventing damage. This situation occurs when the battery is overcharged.
3. The battery case is made of ABS plastic, copper cells.
DEEP CYCLE battery provides, among other things:
- Solar and wind power system
- Emergency power system
- Communication equipment
- Telecommunication systems
- Uninterruptible power supplies
- Wheelchair
- Power tools
- Golf cars
- ATV Buggies
- Marine equipment
- Medical equipment
Characteristic features of DEEP CYCLE battery:
- Excellent recovery after a deep discharge
- Long life - up to 10 years at 25°C
- High mechanical damage and high temperature resistance
- Maintenance-free - no electrolyte refilling or changing
- Safe to use (no leakage of electrolyte, pressure valves)
- Nominal voltage: 12 V
- Rated capacity: 74 Ah
- Total height: 176 mm
- Height: 176mm
- Width: 167 mm
- Length: 347 mm
- Weight: 19.1 kg ± 3%
- Internal Resistance (at 25°C): 5.8 mOhm
- Capacity: (40°C): 102%
- Capacity (25°C): 100%
- Capacity (0°C): 85%
- Capacity (-15°C): 65%
- Self-discharge (25°C) 3msc: 91% of rated capacity
- Self-discharge (25°C) 6msc: 82% of rated capacity
- Self-discharge (25°C) 12msc: 64% of rated capacity
- Recommended Operating Temperature: 25°C ± 3°C
- Operating temperature range - discharge: -15°C to 50°C
- Operating temperature range - charging: -10°C to 50°C
- Operating temperature range - storage: -20°C to 50°C
- Buffer charging voltage (25°C) 13.5 to 13.8 VDC
- Cyclic charging voltage (25°C): 14.1-14.4 VDC
- Maximum charging current: 18.5 A
- Maximum discharge current: 650A
- Estimated service life (25°C): 8-10 years
